Disassembly [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER CAP
    1. Using a screwdriver with its tip wrapped in protective tape, remove the shift lever cap from the floor shift position indicator housing sub-assembly.
      GTY727379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
  2. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
    1. Disengage 2 clamps and disconnect the connector to remove the indicator light wire sub-assembly from the lower No. 2 position indicator housing.
      GTY726051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LOWER NO. 2 POSITION INDICATOR HOUSING
    1. Disengage the 5 claws to remove the lower No. 2 position indicator housing from the floor shift position indicator housing sub-assembly.
      GTY726050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POSITION INDICATOR LIGHT GUIDE
    1. Disengage the 4 claws to remove the position indicator light guide from the lower No. 2 position indicator housing.
      GTY739620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE POSITION INDICATOR LED
    1. Disengage the claw to remove the position indicator LED from the lower No. 2 position indicator housing.
      GTY726049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    1. Disconnect the connector.
      GTY723630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the shift lock control ECU sub-assembly from the shift lock control unit assembly.
  7. REMOVE UPPER POSITION INDICATOR HOUSING
    1. Disengage the 4 claws to remove the upper position indicator housing from the lower position indicator housing.
      GTY723628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

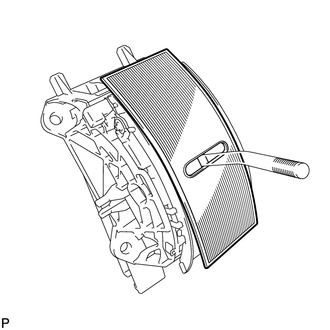

  8. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the lower position indicator housing.
      GTY723627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
    1. Remove the No. 2 position indicator slide cover from the position indicator slide cover.
      GTY727269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LOWER POSITION INDICATOR HOUSING
    1. Disengage the 2 claws and guide to remove the lower position indicator housing from the shift lock control unit assembly.
      GTY732944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
