Replacement [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TRANSFER ASSEMBLY
- When Not Using the Engine Support Bridge:
  (Refer to REMOVAL [12/2015 - ] )
- When Using the Engine Support Bridge:
  (Refer to REMOVAL [12/2015 - 08/2016] )

REMOVE FRONT TRANSAXLE CASE OIL SEAL

Using a screwdriver with its tip wrapped in protective tape, remove the front transaxle case oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape

REMOVE FRONT DIFFERENTIAL CASE OIL SEAL

Using SST, tap out the front differential case oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

INSTALL FRONT TRANSAXLE CASE OIL SEAL

Coat the lip of a new front transaxle case oil seal with MP grease.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

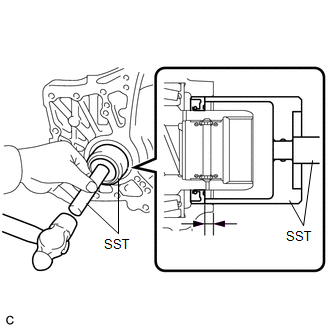

Using SST and a hammer, tap in the front transaxle case oil seal.
- SST: 09649-17010
- SST: 09950-70010
  1. 09951-07200
Oil seal driven in depth

5.5 to 6.5 mm (0.217 to 0.256 in.)

NOTE:
Check that the oil seal is installed in the correct direction.

INSTALL FRONT DIFFERENTIAL CASE OIL SEAL

Coat the lip of a new front differential case oil seal with MP grease.

Using SST and a hammer, tap in the front differential case oil seal.

SST: 09950-60010
1. 09951-00410
SST: 09950-70010
1. 09951-07200

Oil seal driven in depth

21.5 to 22.5 mm (0.846 to 0.886 in.)

NOTE:

Check that the oil seal is installed in the correct direction.

INSTALL TRANSFER ASSEMBLY
- When Not Using the Engine Support Bridge:
  (Refer to INSTALLATION [12/2015 - ] )
- When Using the Engine Support Bridge:
  (Refer to INSTALLATION [12/2015 - 08/2016] )
