Components [12/2015 - 08/2016]

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Heated Oxygen Sensor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

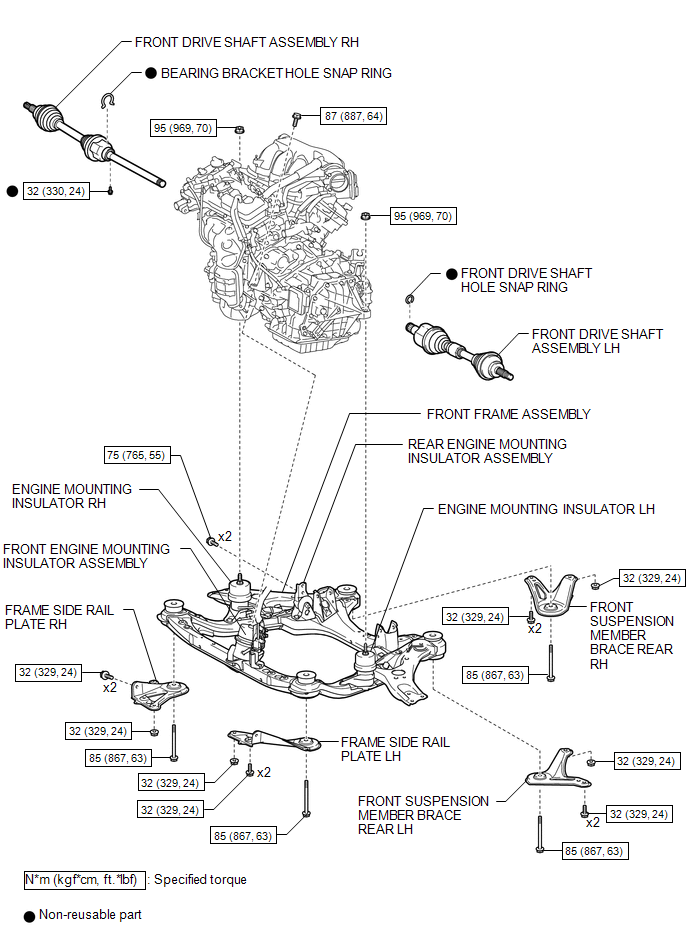

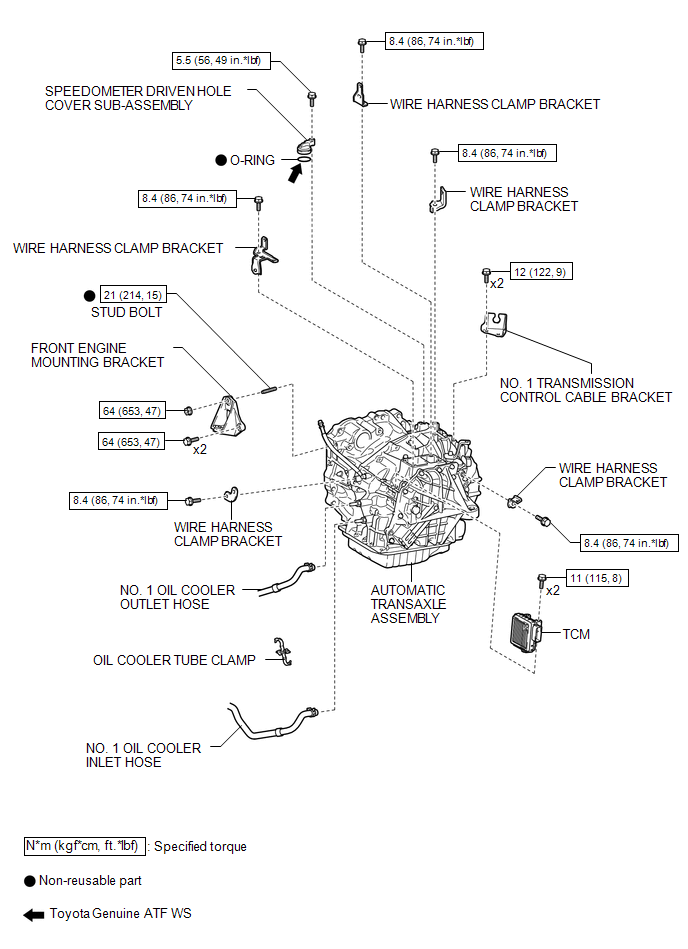

Fig 2: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

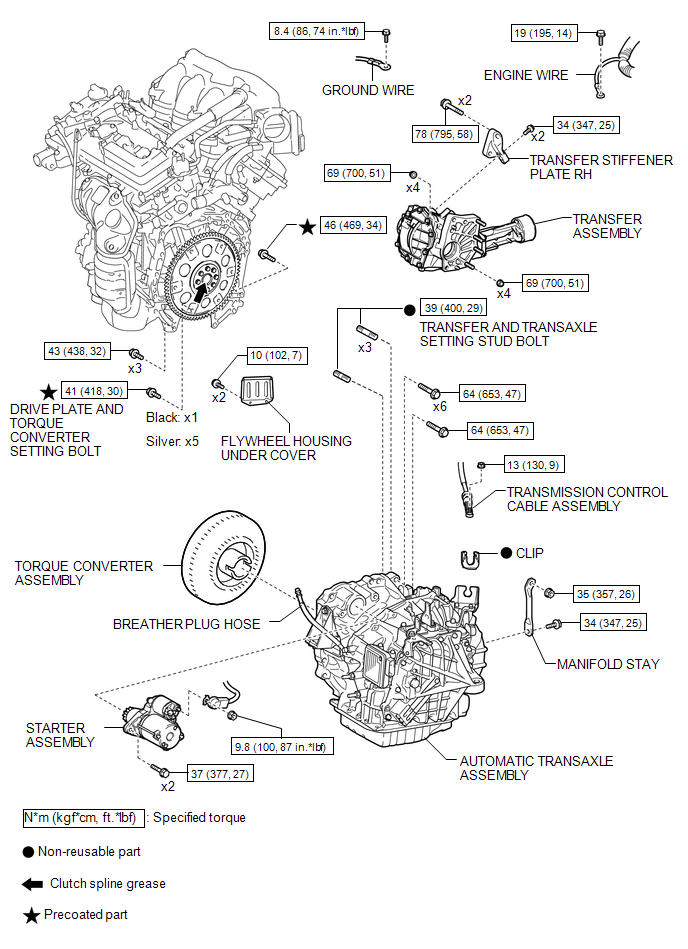

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

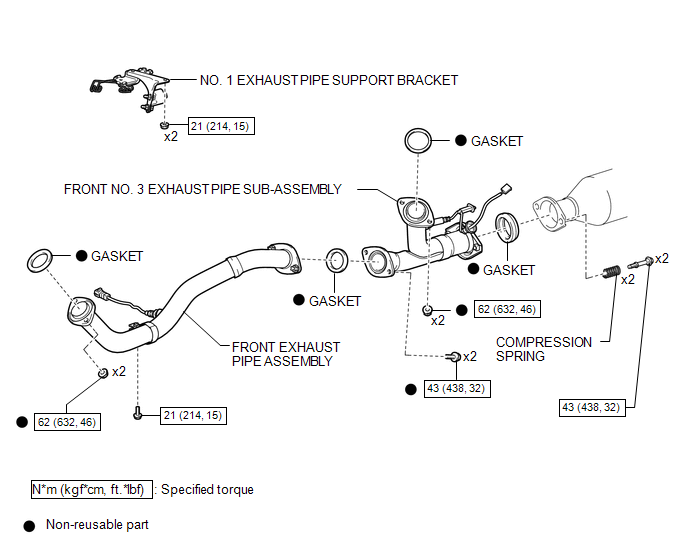

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

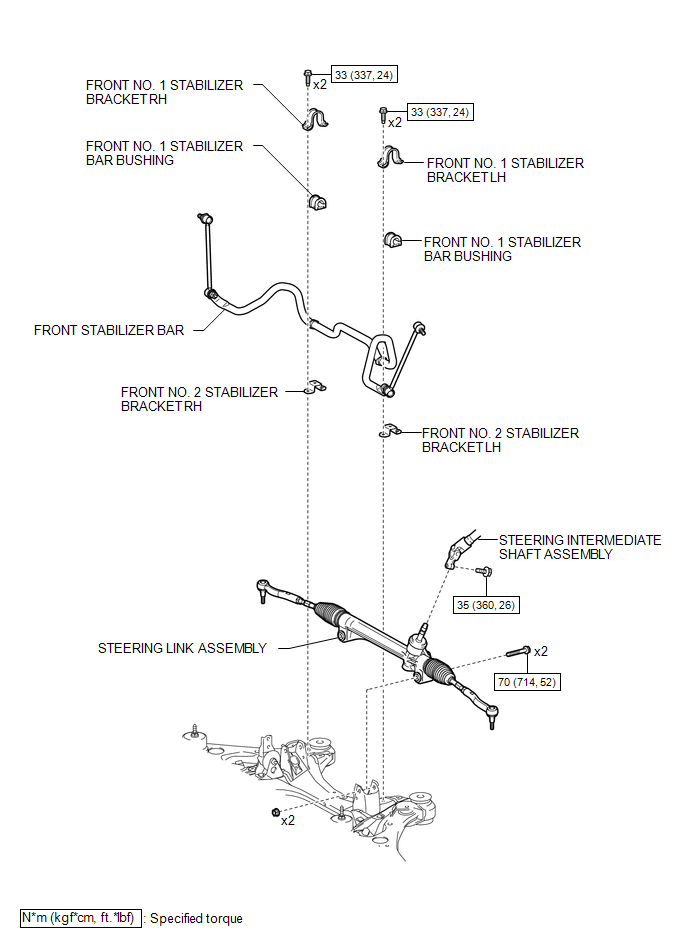

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

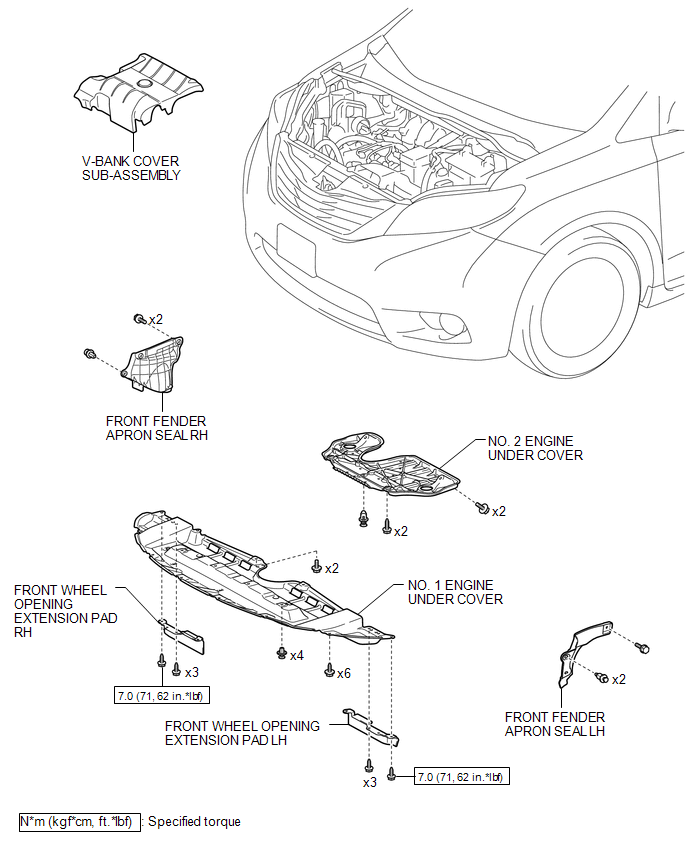

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

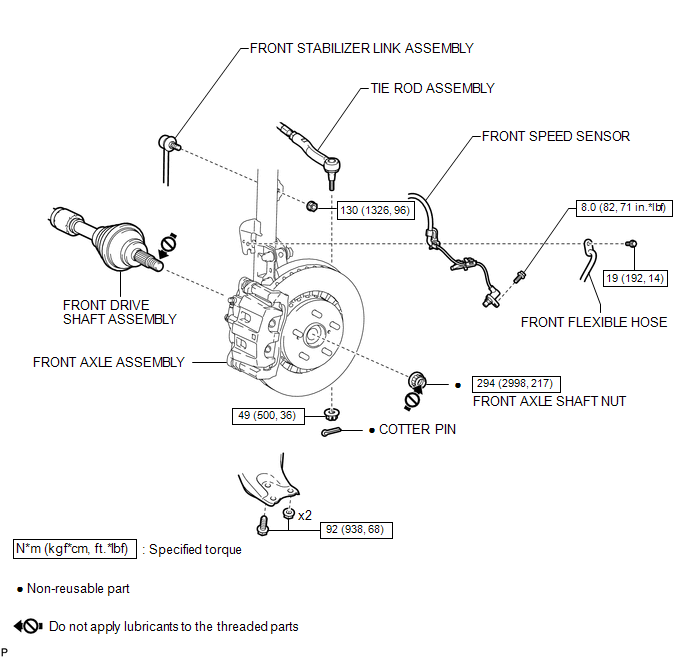

Fig 7: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

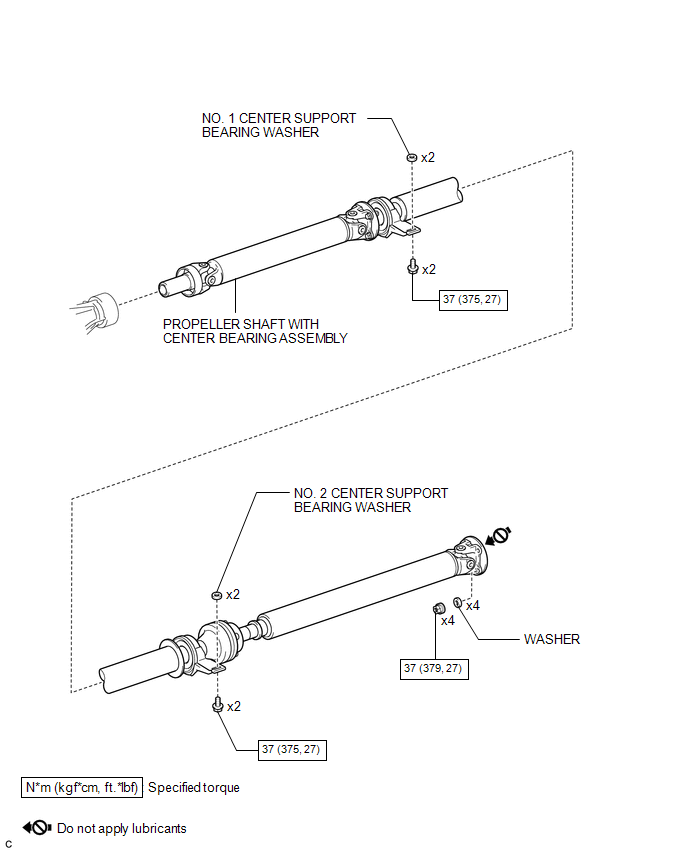

Fig 8: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (8 Of 12)

Fig 9: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (9 Of 12)

Fig 10: Automatic Transaxle Assembly Replacement Components With Torque Specifications (When Using The Engine Support Bridge) (10 Of 12)

Fig 11: Automatic Transaxle Assembly Replacement Components (When Using The Engine Support Bridge) (11 Of 12)

Fig 12: Automatic Transaxle Assembly Replacement Components (When Using The Engine Support Bridge) (12 Of 12)
