Replacement [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN AUTOMATIC TRANSAXLE FLUID

Remove the bolt, 2 clips and front fender apron seal LH.

Remove the refill plug and gasket from the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

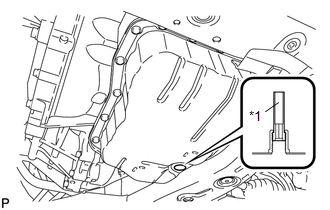

TEXT IN ILLUSTRATION

*1	No. 1 Transmission Oil Filler Tube

Drain automatic transaxle fluid from the automatic transaxle.

Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube into the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	No. 1 Transmission Oil Filler Tube

Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

Using a 6 mm hexagon socket wrench, temporarily install the gasket and the overflow plug into the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Reuse the old gasket. The overflow plug will be removed again to adjust the fluid level.

Temporarily install the gasket and the refill plug into the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Reuse the old gasket. The refill plug will be removed again to adjust the fluid level.

REMOVE FRONT DRIVE SHAFT ASSEMBLY
(Refer to REMOVAL [12/2015 - 08/2016] )

REMOVE TRANSAXLE CASE OIL SEAL

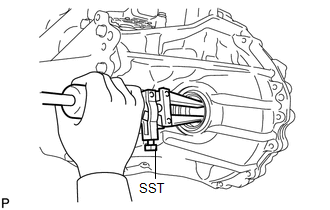

Using SST, tap out the transaxle case oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

REMOVE FRONT TRANSAXLE CASE OIL SEAL

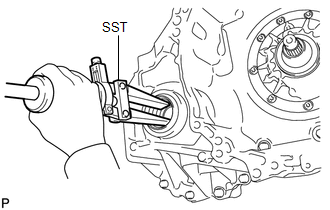

Using SST, tap out the front transaxle case oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

INSTALL TRANSAXLE CASE OIL SEAL

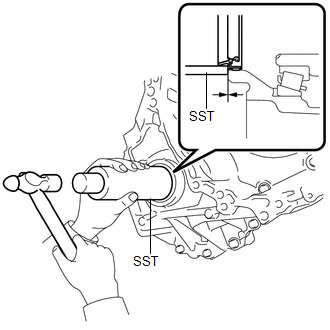

Using SST and a hammer, tap in a new transaxle case oil seal.

SST: 09316-10010
SST: 09950-70010
1. 09951-07100

Oil seal driven in depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Check that the oil seal is installed in the correct direction.

Coat the lip of the transaxle case oil seal with MP grease.

INSTALL FRONT TRANSAXLE CASE OIL SEAL

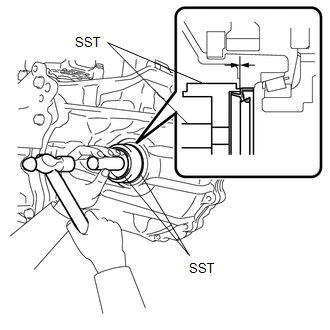

Using SST and a hammer, tap in a new front transaxle case oil seal.

SST: 09316-60011
1. 09316-00011

Oil seal driven in depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Check that the oil seal is installed in the correct direction.

Coat the lip of the front transaxle case oil seal with MP grease.

INSTALL FRONT DRIVE SHAFT ASSEMBLY
(Refer to INSTALLATION [12/2015 - 08/2016] )
