Components [12/2015 - 08/2016]

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

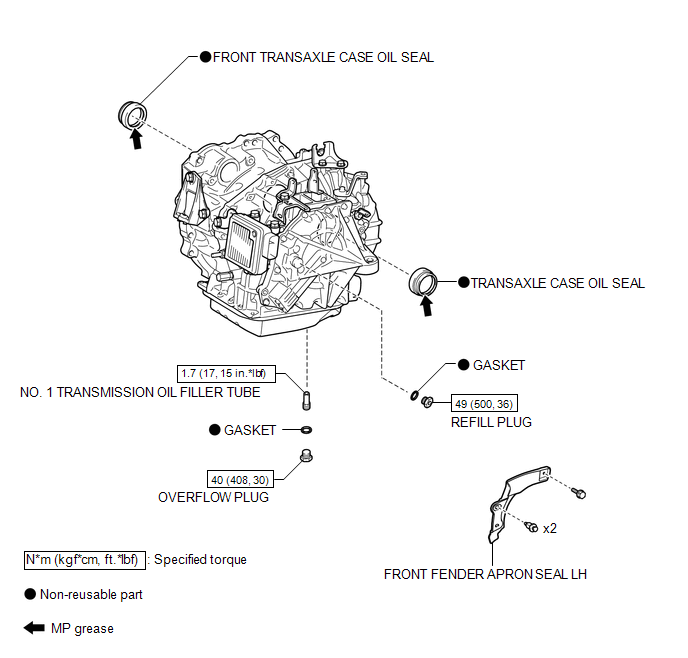

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications
GTY703609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
