Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  6

  2. REMOVE DUTY VACUUM SWITCHING VALVE
    1. Disconnect the duty vacuum switching valve connector.

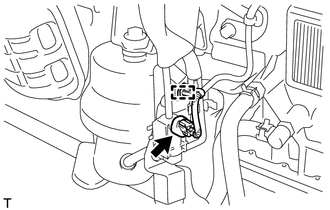

      GTY300113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.
    3. Disconnect the 3 vacuum hoses from the duty vacuum switching valve.

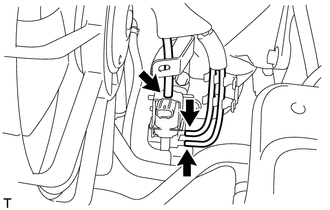

      GTY300114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt.

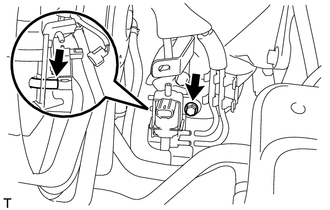

      GTY300115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the hose from the duty vacuum switching valve.
