Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DUTY VACUUM SWITCHING VALVE

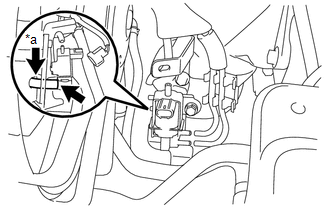

Connect the hose to the duty vacuum switching valve.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Front Engine Mounting Insulator Side

NOTE:

Confirm that the hose on the front engine mounting insulator side is securely connected.

Install the duty vacuum switching valve with the bolt.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

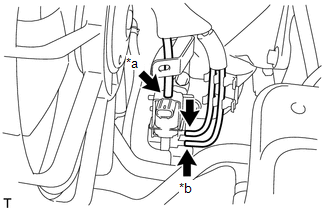

Connect the 3 vacuum hoses to the duty vacuum switching valve.

TEXT IN ILLUSTRATION

*a	Large Hose
*b	Dummy Hose (not Used for Ventilation, the Other End is Plugged)

Connect the duty vacuum switching valve connector.
Engage the wire harness clamp.

INSTALL AIR CLEANER INLET COVER ASSEMBLY SEAL
See step 5
