Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.

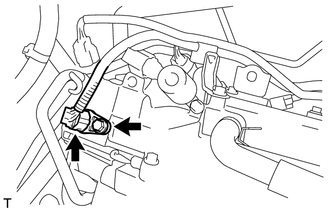

      GTY697629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.

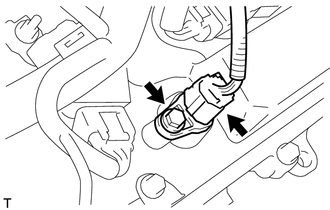

      GTY306065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.

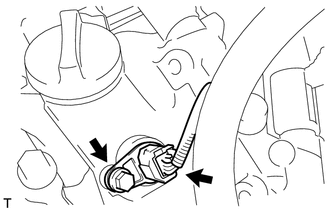

      GTY298019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.

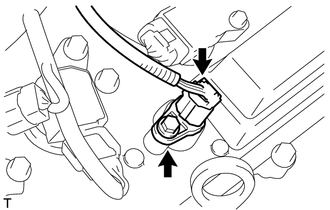

      GTY298018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
