Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

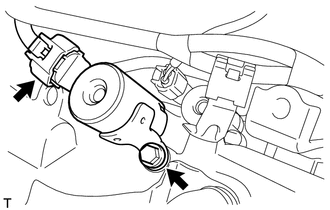

    1. Disconnect the oil control valve connector.
      GTY301071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

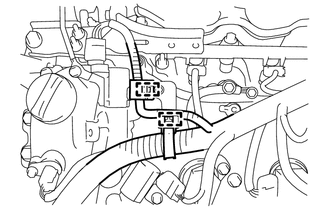

    1. Disengage the 2 clamps.
      GTY301066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

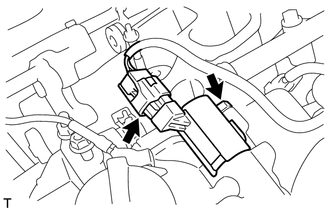

    2. Disconnect the oil control valve connector.
      GTY301070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and oil control valve.
    4. Remove the O-ring from the oil control valve.
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

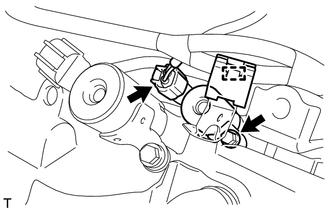

    1. Disengage the wire harness clamp.
      GTY294972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the oil control valve connector.
    3. Remove the bolt and oil control valve.
    4. Remove the O-ring from the oil control valve.
  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

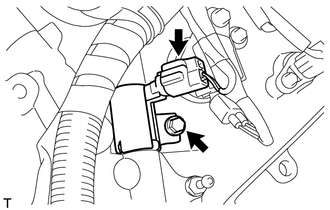

    1. Disconnect the oil control valve connector.
      GTY294974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
