Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET

    HINT:

    Securely support the automatic transaxle using a jack.

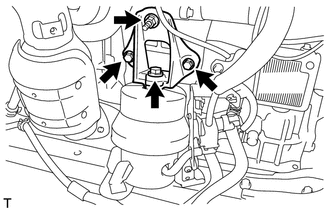

    1. Remove the 3 bolts, nut and the transverse engine mounting bracket.
      GTY294976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

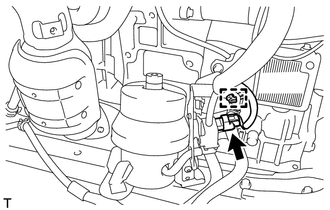

    1. Disconnect the duty vacuum switching valve connector.
      GTY295911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.

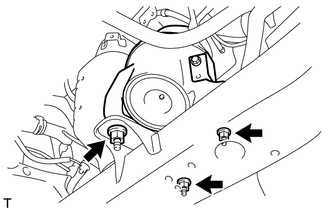

    3. Remove the 3 nuts and the front engine mounting insulator assembly.
      GTY298026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
