INSTALL TRANSVERSE ENGINE MOUNTING BRACKET

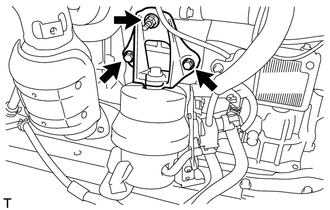

Set the front engine mounting insulator in place using the 3 bolt holes.

Install the transverse engine mounting bracket to the front engine mounting insulator assembly.

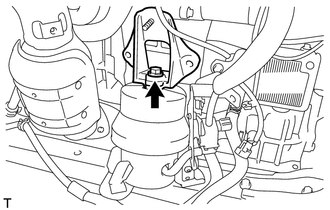

Install the bolt to the transverse engine mounting bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

Install the 2 bolts and the nut.

Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
1. Install the front engine mounting insulator assembly with the 3 nuts.
  Torque: 58 N*m (591 kgf*cm, 43 ft.*lbf)
2. Connect the duty vacuum switching valve connector.
3. Engage the wire harness clamp.
INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
(Refer to INSTALLATION [12/2015 - 08/2016] )
