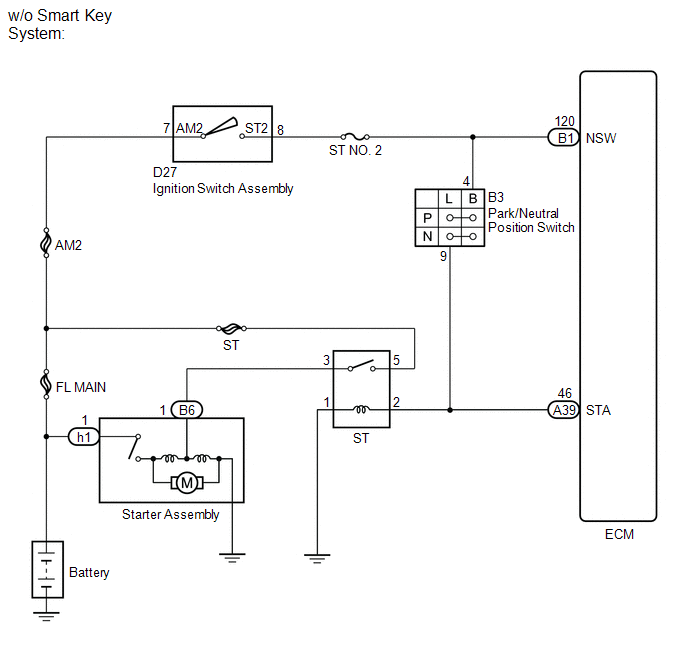

DTC P0617: Starter Relay Circuit High [12/2015 - 08/2016]: Wiring Diagram

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
