Reassembly [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL PUMP COVER
    1. Coat the drive and driven rotors with engine oil and place them into the timing chain cover with the marks facing up (oil pump cover side). Check that the rotors rotate smoothly.
      GTY688117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Mark

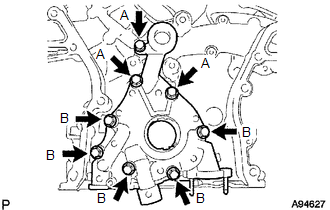

    2. Install the oil pump cover with the 8 bolts.
      GTY708335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      BOLT LENGTH

      Item Length
      Bolt A 22 mm (0.866 in.)
      Bolt B 40 mm (1.58 in.)

      Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)

  2. INSTALL OIL PUMP RELIEF VALVE
    1. Coat the oil pump relief valve with engine oil.
      GTY298868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the oil pump relief valve and relief valve spring into the oil pump cover hole.
    3. Using a 27 mm socket wrench, install the relief valve plug.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
