On-Vehicle Inspection [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-RIBBED BELT

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. INSPECT WATER PUMP ASSEMBLY

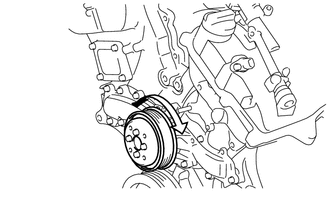

    1. Turn the pulley, and check that the water pump bearing moves smoothly and noiselessly.
      GTY249122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the bearing does not move smoothly and noiselessly, replace the water pump.

  3. INSTALL V-RIBBED BELT

    (Refer to INSTALLATION [12/2015 - 08/2016] )
