Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE FAN

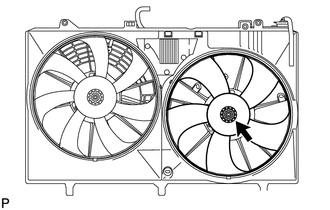

    1. Remove the nut and fan.
      GTY441160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 FAN

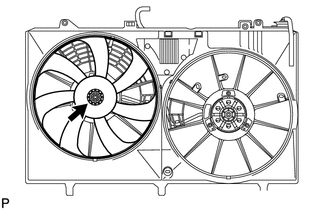

    1. Remove the nut and No. 2 fan.
      GTY454169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 COOLING FAN MOTOR

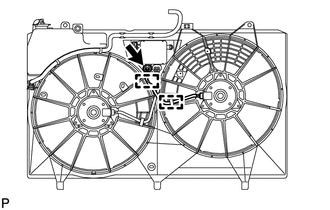

    1. Disconnect the No. 2 cooling fan motor connector and 2 clamps.
      GTY441158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

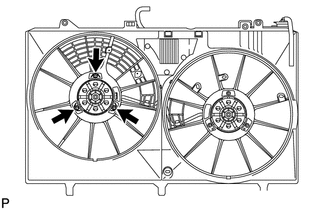

    2. Remove the 3 screws and No. 2 cooling fan motor.
      GTY441156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COOLING FAN MOTOR

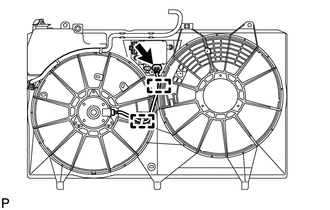

    1. Disconnect the cooling fan motor connector and 2 clamps.
      GTY441157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

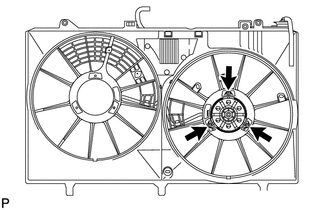

    2. Remove the 3 screws and cooling fan motor.
      GTY441155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
