Parts Location [12/2015 - 08/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

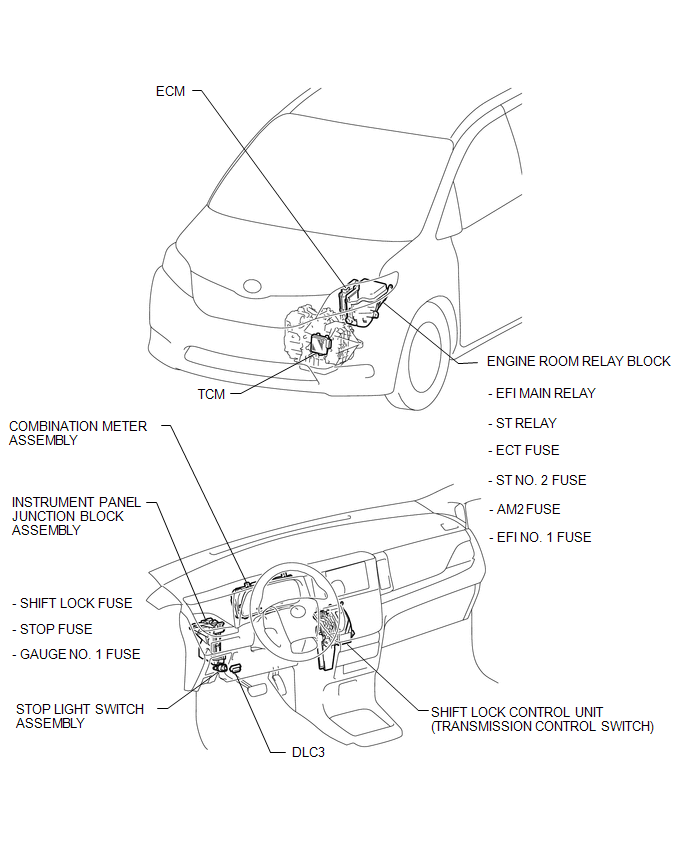

Fig 1: Automatic Transaxle System (U66OE) Component Locations (1 Of 2)
GTY737363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

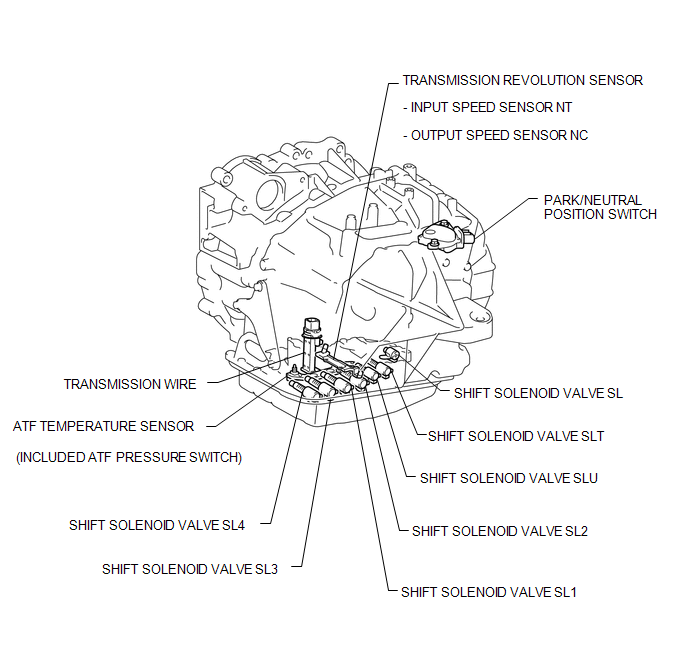

Fig 1: Automatic Transaxle System (U66OE) Component Locations (2 Of 2)
GTY728231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
