On-Vehicle Inspection [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM

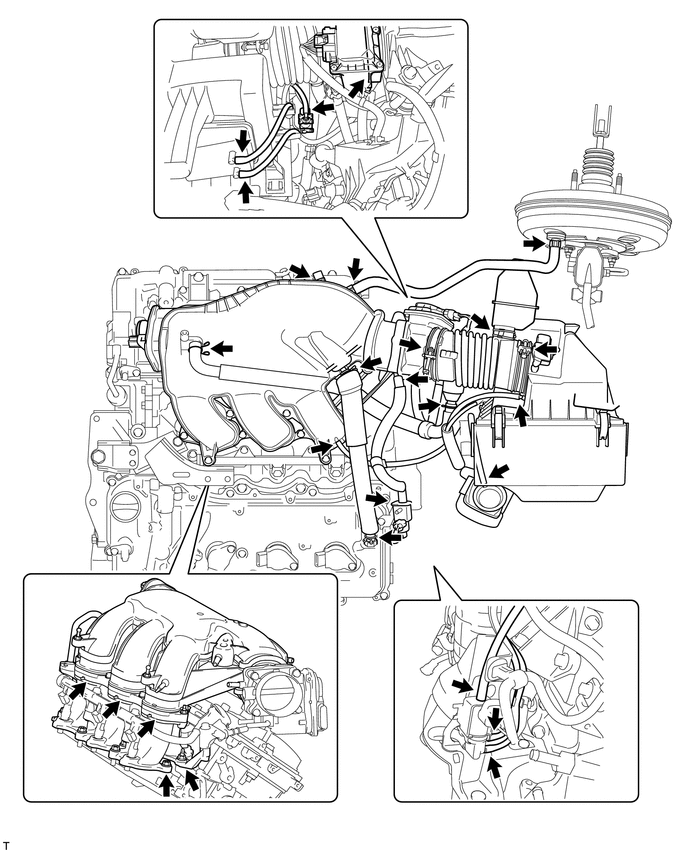

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY299831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
