Inspection [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT IGNITION SWITCH
    1. Check the ignition switch resistance.

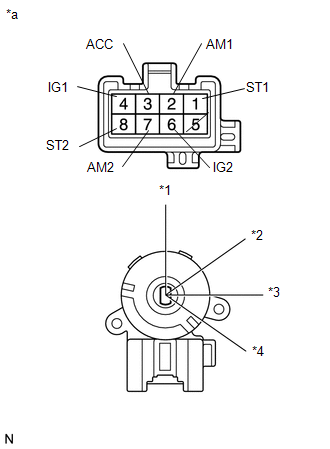

      GTY442802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.
        TEXT IN ILLUSTRATION

        *1 LOCK
        *2 ACC
        *3 ON
        *4 START
        *a Component without harness connected
        (Ignition Switch)

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        Between all terminals LOCK 10 kΩ or higher
        2 (AM1) - 3 (ACC) ACC Below 1 Ω
        2 (AM1) - 3 (ACC) - 4 (IG1) ON Below 1 Ω
        6 (IG2) - 7 (AM2)
        1 (ST1) - 2 (AM1) - 4 (IG1) START Below 1 Ω
        6 (IG2) - 7 (AM2) - 8 (ST2)

        If the result is not as specified, replace the switch assembly.
