Monitor Description
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

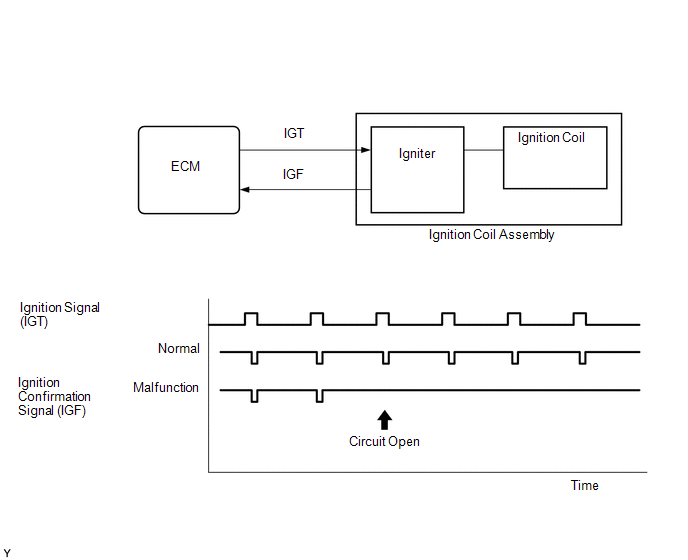

If the ECM does not receive any IGF signals despite the IGT signal being transmitted, it interprets this as a fault in the igniter and stores a DTC.
If the malfunction is not repaired successfully, a DTC is stored 1 second after the engine is next started.
