DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent [12/2015 - 08/2016]: Description
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
The crankshaft position sensor system consists of a crank angle sensor plate and a pickup coil. The sensor plate has 34 teeth and is installed on the crankshaft. The pickup coil is made of wound copper wire, an iron core and a magnet.
The sensor plate rotates and, as each tooth passes through the pickup coil, a pulse signal is created. The pickup coil generates 34 signals per engine rotation. Based on these signals, the ECM calculates the crankshaft position and engine speed. Using these calculations, the fuel injection timing and ignition timing are controlled.
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0335 | One of the following conditions is met when camshaft position sensor fail is not detected (1 trip detection logic):
|
|
| P0339 | Under conditions (a), (b) and (c), no crankshaft position sensor signal to ECM for 0.05 seconds or more (1 trip detection logic): (a) Engine speed 1000 rpm or more (b) Starter signal off (c) 3 seconds or more have elapsed since starter signal switched from on to off |
|

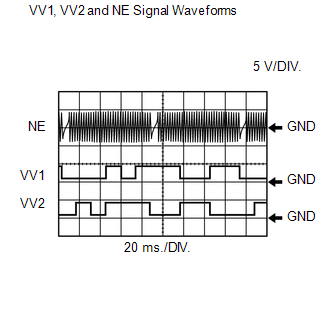

- Reference: Inspection using an oscilloscope
HINT:
- The correct waveform is as shown in illustration above.
- VV1+ and VV2+ stand for the VVT sensor signal, and NE+ stands for the crankshaft position sensor signal.
Item Content ECM Terminal Names Between VV1+ and VV1-, VV2+ and VV2-
Between NE+ and NE-Tester Range 5 V/DIV.
20 ms./DIV.Condition Idling with warm engine
