DTC P0230: Fuel Pump Primary Circuit [12/2015 - 08/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FUEL PMP RELAY
- Inspect the FUEL PMP relay (Refer to PROCEDURE - Step 3 ).
Result:
NG
REPLACE F/PMP RELAY
Result:
OK
See step 2
- CHECK TERMINAL VOLTAGE (FUEL PMP RELAY)
- Remove the FUEL PMP relay from the engine room relay block.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

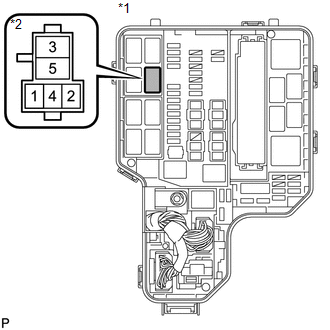

Tester Connection Condition Specified Condition 2 (FUEL PMP relay holder) - Body ground Cranking 11 to 14 V 2 (FUEL PMP relay holder) - Body ground Ignition switch ON 0 to 3 V TEXT IN ILLUSTRATION*1 Engine Room Relay Block *2 FUEL PMP Relay Holder
Result:
NG
CHECK FUEL PUMP CONTROL CIRCUIT
(Refer to Fuel Pump Control Circuit [12/2015 - 08/2016] )
Result:
OK
See step 3
- Remove the FUEL PMP relay from the engine room relay block.
- CHECK HARNESS AND CONNECTOR (FUEL PMP RELAY - ECM)
- Remove the FUEL PMP relay from the engine room relay block.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open)
Tester Connection Condition Specified Condition 1 (F/PMP relay holder) - A39-48 (FPR) Always Below 1 Ω Standard Resistance (Check for Short)
Tester Connection Condition Specified Condition 1 (F/PMP relay holder) or A39-48 (FPR) - Body ground Always 10 kΩ or higher
Result:
OK
REPLACE ECM
(Refer to REMOVAL [12/2015 - 08/2016] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
