Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TIMING CHAIN CASE OIL SEAL

Apply MP grease to a new timing chain case oil seal lip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

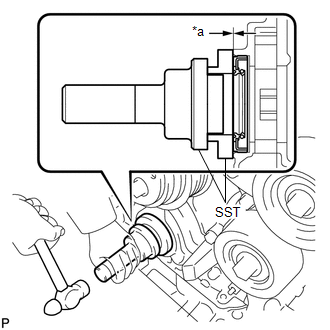

Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover edge.
TEXT IN ILLUSTRATION

*a Oil seal tap in depth
(0 to 1.0 mm)
- SST: 09223-22010
- SST: 09506-35010
Oil seal tap in depth

0 to 1.0 mm (0 to 0.0393 in.)
NOTE:
- Keep the lip free of foreign matter.
- Do not tap the timing chain case oil seal at an angle.

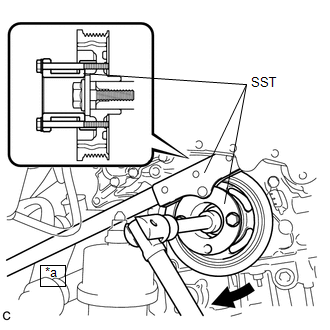

INSTALL CRANKSHAFT PULLEY

Align the pulley set key with the key groove of the pulley, and slide on the pulley.

Using SST, install the pulley bolt.

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

Torque: 250 N*m (2550 kgf*cm, 184 ft.*lbf)

TEXT IN ILLUSTRATION

*a	Hold
	Turn

INSTALL FAN AND GENERATOR V BELT
See step 1
INSTALL FRONT FENDER APRON SEAL RH
INSTALL FRONT WHEEL RH
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
