Removal [12/2015 - 08/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT WHEEL RH
- REMOVE FRONT FENDER APRON SEAL RH
See step 10
- REMOVE FAN AND GENERATOR V BELT

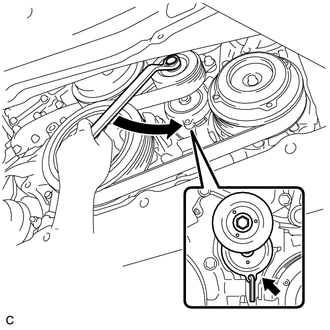

- Release the V-ribbed belt tension by turning the V-ribbed belt tensioner counterclockwise, and remove the fan and generator V belt from the V-ribbed belt tensioner.
- While turning the V-ribbed belt tensioner counterclockwise, align with its holes, and then insert a 5 mm hexagon wrench into the holes to fix the V-ribbed belt tensioner.
- Release the V-ribbed belt tension by turning the V-ribbed belt tensioner counterclockwise, and remove the fan and generator V belt from the V-ribbed belt tensioner.
