Components [12/2015 - 08/2016]

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

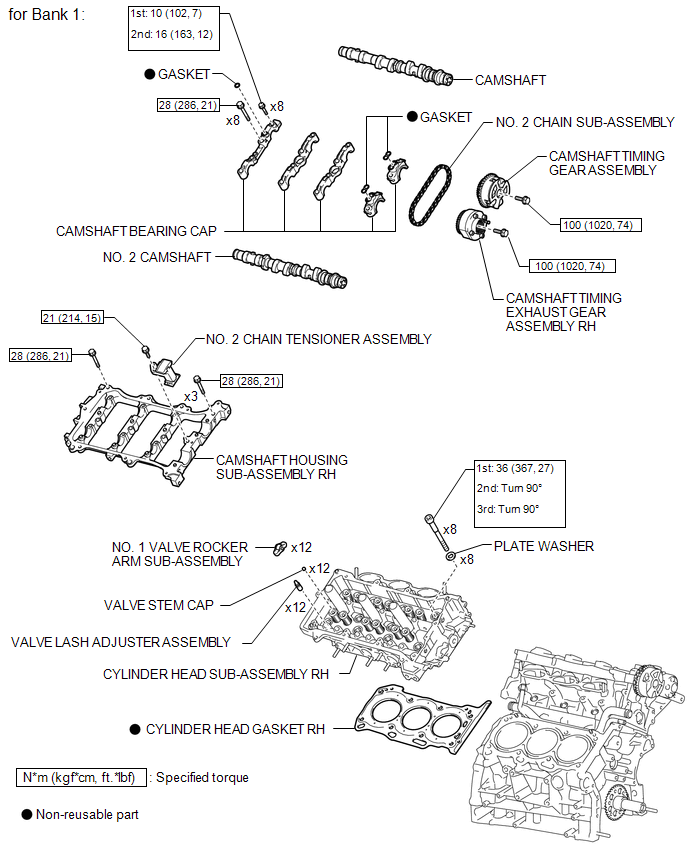

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 2)
GTY701900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

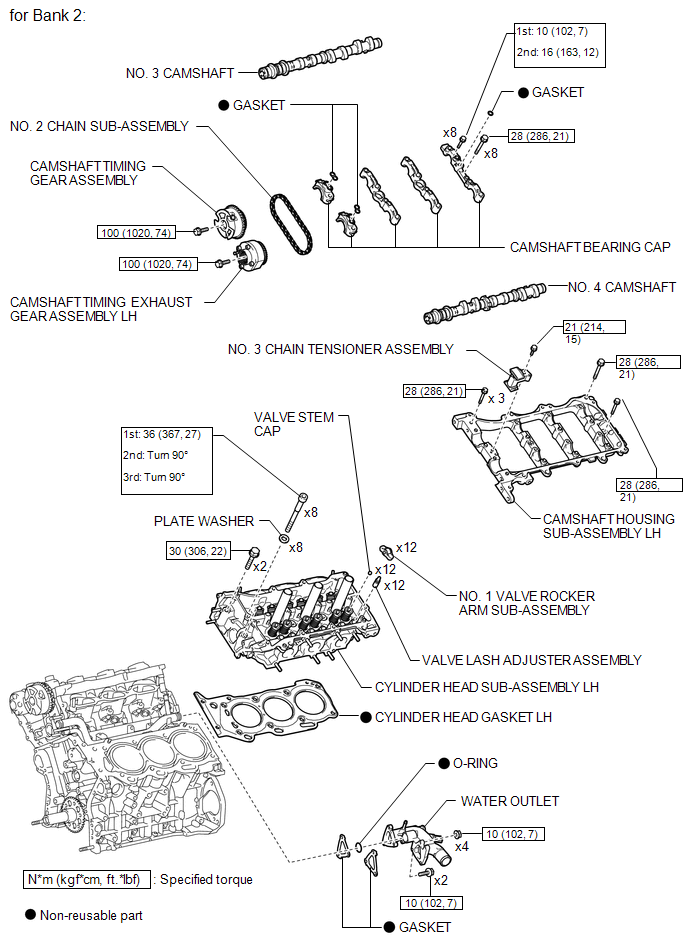

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 2)
GTY706589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
