Replacement [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

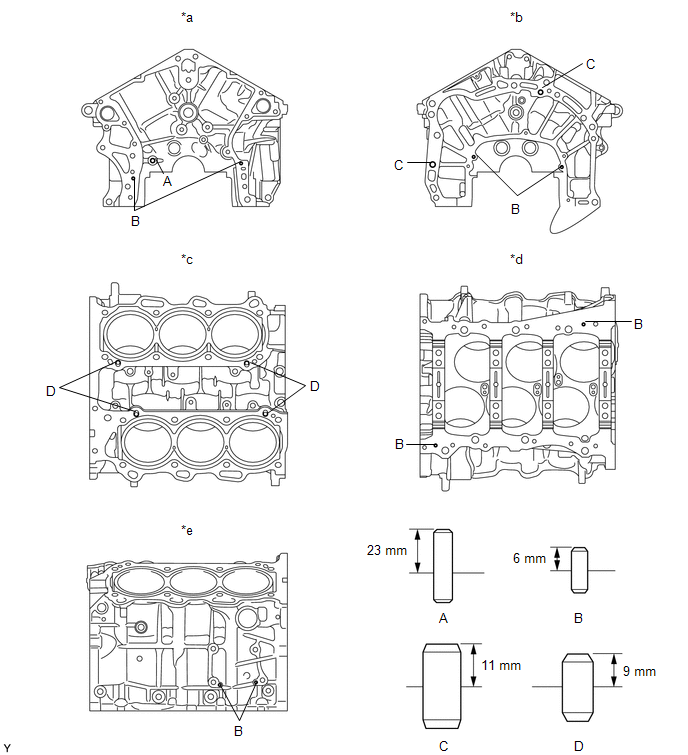

REPLACE STRAIGHT PIN

Using a plastic hammer, tap in new straight pins to the cylinder block.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Front Cylinder Block	*b	Rear Cylinder Block
*c	Upper Cylinder Block	*d	Lower Cylinder Block
*e	Cylinder Block RH Side	-	-

Standard Protrusion

Item	Protrusion
Pin A	23 mm (0.906 in.)
Pin B	6 mm (0.236 in.)
Pin C	11 mm (0.433 in.)
Pin D	9 mm (0.354 in.)

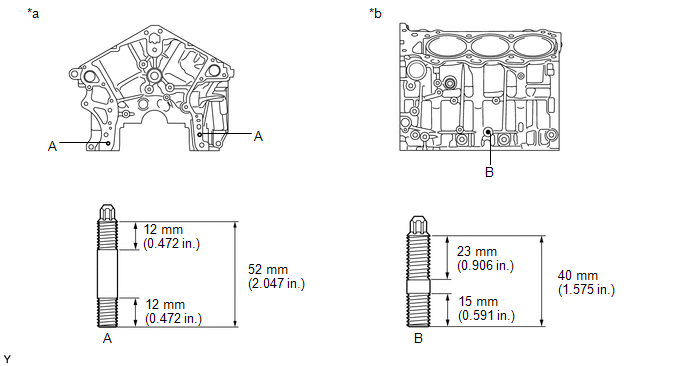

REPLACE STUD BOLT

Using an E8 and E10 "TORX" sockets, install the stud bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Front Cylinder Block

Cylinder Block LH Side

Bolt A

Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Bolt B

Torque: 17 N*m (173 kgf*cm, 13 ft.*lbf)
