REMOVE PISTON SUB-ASSEMBLY WITH CONNECTING ROD

Check that the matchmarks on the connecting rod sub-assembly and connecting rod cap are aligned.
HINT:

The matchmarks on the connecting rod sub-assembly and connecting rod cap are guides for the correct reassembly.

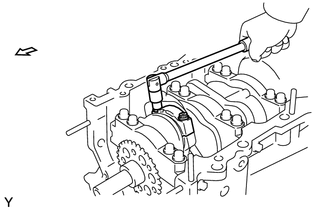

Remove the 2 connecting rod cap bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Engine Front

Using the 2 removed connecting rod cap bolts, remove the connecting rod cap and lower bearing by wiggling the connecting rod cap right and left.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Keep the lower bearing inserted to the connecting rod cap.

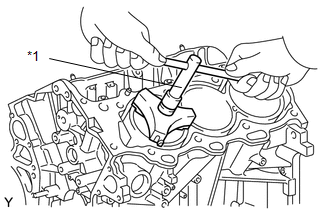

Using a ridge reamer, remove all the carbon from the top of the cylinder.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Ridge Reamer

Push the piston, connecting rod assembly and upper bearing through the top of the cylinder block.
HINT:
- Keep the bearing, connecting rod and cap together.
- Arrange the piston and connecting rod assemblies in the correct order.

REMOVE CONNECTING ROD BEARING
HINT:

Arrange the removed parts in the correct order.

REMOVE PISTON RING SET

Using a piston ring expander, remove the 2 compression rings.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Piston Ring Expander

Remove the oil ring expander and 2 side rails by hand.
HINT:

Arrange the removed parts in the correct order.

REMOVE PISTON

Check the fitting condition between the piston and piston pin.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Try to move the piston back and forth on the piston pin.
If any movement is felt, replace the piston and pin as a set.

Disconnect the connecting rod from the piston.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, pry off the piston pin hole snap rings from the piston.

Gradually heat the piston to approximately 80°C (176°F).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

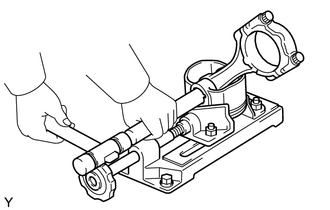

Using a brass bar and a plastic hammer, lightly tap out the piston pin and remove the connecting rod sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The piston and piston pin are a matched set.
Arrange the pistons, piston pins, piston pin hole snap rings, connecting rods and connecting rod bearings in the correct order.

Using a gasket scraper, remove the carbon from the piston top.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a groove cleaning tool or broken ring, clean the piston ring grooves.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using solvent and a brush, thoroughly clean the piston.

NOTE:

Do not use a wire brush.

REMOVE CRANKSHAFT

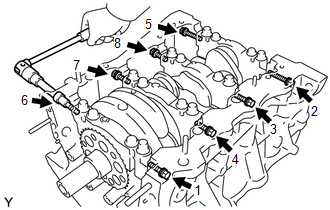

Uniformly loosen and remove the 8 crankshaft bearing cap bolts and the 8 seal washers in several steps and in the sequence shown in the illustration.

Fig 1: Crankshaft Loosening Sequence (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

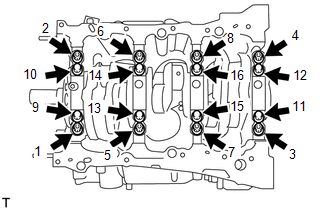

Uniformly loosen the 16 crankshaft bearing cap bolts, in several steps and in the sequence shown in the illustration.

Fig 2: Crankshaft Loosening Sequence (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

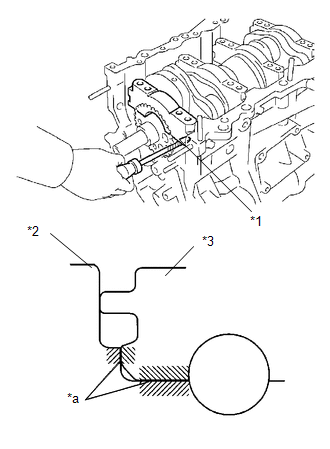

Using a screwdriver, pry out the crankshaft bearing caps. Remove the 4 crankshaft bearing caps and lower crankshaft bearings.

TEXT IN ILLUSTRATION

*1	Protective Tape
*2	Cylinder Block
*3	Bearing Cap
*a	Joint Surface

NOTE:

Push up on the cap slowly and evenly, alternating from the right and left side so that the bearing cap can be removed.
Be careful not to damage the joint surface of the cylinder block and the crankshaft bearing cap.

Remove the crankshaft.

REMOVE CRANKSHAFT BEARING
1. Remove the upper crankshaft bearings and lower crankshaft bearings.
  HINT:

  Arrange the removed parts in the correct order.

REMOVE CRANKSHAFT THRUST WASHER SET

Remove the upper crankshaft thrust washers from the cylinder block sub-assembly.

REMOVE NO. 1 OIL NOZZLE SUB-ASSEMBLY

Using a 5 mm hexagon wrench, remove the 3 bolts and No. 1 oil nozzle sub-assemblies.

Check the 3 oil nozzles for damage or clogging.
If necessary, replace the No. 1 oil nozzle sub-assembly.

CLEAN CYLINDER BLOCK
