Active Control Engine Mount System [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK VACUUM HOSES
    1. If the hose is damaged, replace the vacuum hose assembly.
      GTY339232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the air and vacuum hoses for looseness, disconnection and blockage.

      OK

      No looseness, disconnection or blockage.

      TEXT IN ILLUSTRATION

      *1 Engine
      *2 Duty Vacuum Switching Valve
      *3 Front Engine Mounting Insulator Assembly
      *4 ECM
      *5 Air Cleaner Filter Element Sub-assembly
      *6 Vacuum Tank
      *a to Intake Air Control Valve

    Result:

    NG

    REPAIR OR REPLACE VACUUM HOSES

    Result:

    OK

    See step  2

  2. CHECK VACUUM
    1. Start the engine.

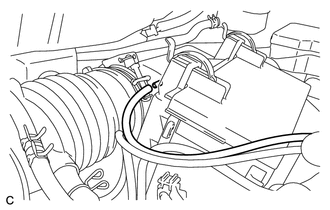

      GTY303844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose from the air cleaner cap.
    3. Check that the disconnected port located on the vacuum tank applies suction to your finger.

      OK

      Vacuum exists.

    Result:

    NG

    CHECK AND REPLACE VACUUM SOURCE AND HOSES

    Result:

    OK

    See step  3

  3. INSPECT DUTY VACUUM SWITCHING VALVE (OPERATION)
    1. Inspect the duty vacuum switching valve (Refer to INSPECTION [12/2015 - 08/2016] ).

    Result:

    NG

    REPLACE DUTY VACUUM SWITCHING VALVE

    (Refer to REMOVAL [12/2015 - 08/2016] )

    Result:

    OK

    See step  4

  4. INSPECT DUTY VACUUM SWITCHING VALVE (RESISTANCE)
    1. Inspect the duty vacuum switching valve (Refer to INSPECTION [12/2015 - 08/2016] ).

    Result:

    NG

    REPLACE DUTY VACUUM SWITCHING VALVE

    (Refer to REMOVAL [12/2015 - 08/2016] )

    Result:

    OK

    See step  5

  5. INSPECT FRONT ENGINE MOUNTING INSULATOR ASSEMBLY (VACUUM LEAK)
    1. Inspect the front engine mounting insulator assembly (Refer to PROCEDURE - Step 1 ).

    Result:

    NG

    REPLACE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

    Result:

    OK

    See step  6

  6. INSPECT DUTY VACUUM SWITCHING VALVE (POWER SOURCE VOLTAGE)
    1. Disconnect the duty vacuum switching valve connector.
      GTY738826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A64-1 - Body ground Ignition switch ON 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Duty Vacuum Switching Valve)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI NO. 2 FUSE - DUTY VACUUM SWITCHING VALVE)

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (DUTY VACUUM SWITCHING VALVE - ECM)
    1. Disconnect the A64 duty vacuum switching valve connector.
    2. Disconnect the B1 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A64-2 - B1-83 (ACM) Always Below 1 Ω
      A64-2 or B1-83 (ACM) - Body ground Always 10 kΩ or higher

    Result:

    OK

    REPLACE ECM

    (Refer to REMOVAL [12/2015 - 08/2016] )

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
