Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  2. REMOVE PURGE VSV

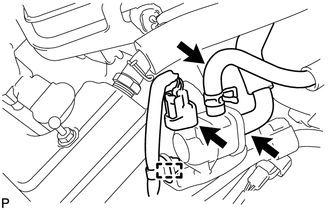

    1. Disconnect the purge VSV connector.
      GTY298372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire harness clamp.
    3. Disconnect the fuel vapor feed hose assembly and No. 1 fuel vapor feed hose.
    4. Remove the bolt and purge VSV.
      GTY307244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
