Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  2. REMOVE VENTILATION VALVE SUB-ASSEMBLY

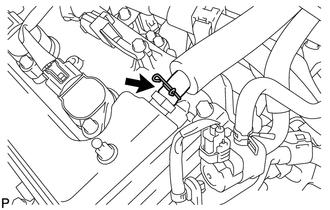

    1. Disconnect the ventilation hose from the ventilation valve sub-assembly.
      GTY308138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

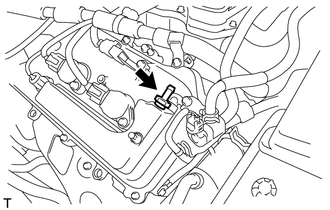

    2. Using a 19 mm deep socket wrench, remove the ventilation valve sub-assembly.
      GTY307859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
