Inspection [12/2015 - 08/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FUEL TANK CAP ASSEMBLY
- Check the appearance of the fuel tank cap assembly.
- Check that there is no deformation or damage to the fuel tank cap assembly or fuel tank cap gasket.TEXT IN ILLUSTRATION
*1 Fuel Tank Cap Gasket If there is any deformation or damage, replace the fuel tank cap assembly or fuel tank cap gasket.

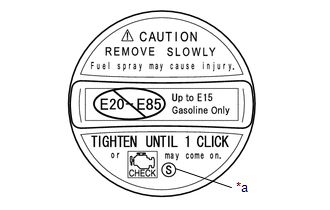

NOTE:Confirm that ID mark S is printed on the replacement fuel tank cap assembly.
TEXT IN ILLUSTRATION*a ID Mark
- Check that there is no deformation or damage to the fuel tank cap assembly or fuel tank cap gasket.
- Check the appearance of the fuel tank cap assembly.
