Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CHARCOAL CANISTER PROTECTOR

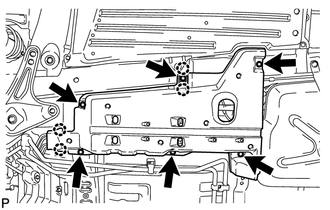

    1. Remove the 6 bolts.
      GTY434586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and remove the charcoal canister protector.
  2. DISCONNECT FUEL TANK VENT HOSE

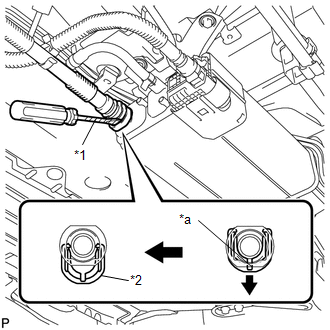

    1. Insert a screwdriver with its tip wrapped in protective tape into the quick connector cutout as shown in the illustration, pry up the retainer and disconnect the fuel tank vent hose.
      GTY424403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Retainer
      *a Cutout

      HINT:

      Do not remove the retainer.

      NOTE:
      • Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
      • The quick connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
      • Do not bend or twist the tubes.
      • Protect the contact surface by covering it with a plastic bag.
      • If the connector is stuck, push and pull on the parts to separate them.
  3. DISCONNECT CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY

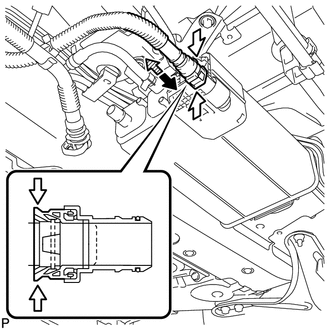

    1. Disconnect the charcoal canister outlet tube (Refer to PRECAUTION [12/2015 - 08/2016] ).
      GTY452747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Push
      Pinch
      Pull Out
      NOTE:
      • Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
      • The quick connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
      • Do not use any tools.
      • Do not bend or twist the tubes.
      • Protect the contact surface by covering it with a plastic bag.
      • If the connector is stuck, push and pull on the parts to separate them.
  4. REMOVE CHARCOAL CANISTER ASSEMBLY

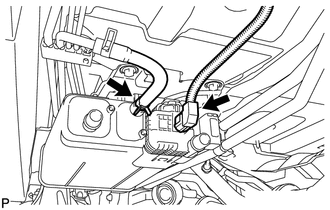

    1. Disconnect the fuel emission hose and connector.
      GTY441773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

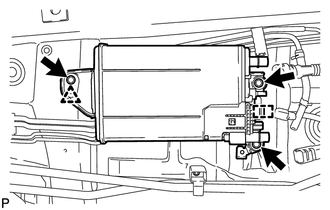

    2. Remove the 3 bolts and clip.
      GTY454297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook and remove the charcoal canister assembly.
  5. REMOVE CHARCOAL CANISTER LEAK DETECTION PUMP SUB-ASSEMBLY
    1. Before removing the charcoal canister leak detection pump sub-assembly, clean the canister by blowing air into it to ensure that the canister is free of foreign matter.
      NOTE:
      • Make sure to clean the canister using only air.
      • Do not use gasoline, thinners or solvents.
    2. While disengaging the 2 claws as shown in the illustration, push the charcoal canister leak detection pump sub-assembly upwards using a screwdriver to remove it.
      GTY427291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    3. Check if the canister contains foreign matter such as mud or water.
      1. Visually check that the inside of the canister is free of foreign matter.
      2. Hold the canister upside down to make sure that the canister is free of foreign matter. If the canister contains foreign matter, replace the canister.
