On-Vehicle Inspection [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT VACUUM SURGE TANK

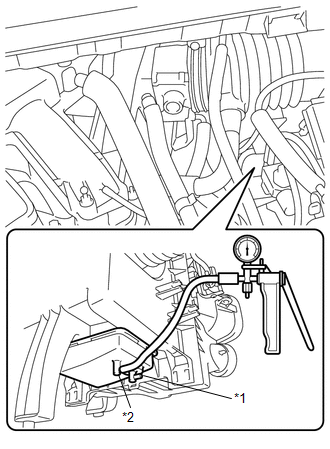

    1. Check that air flows from port B to port A.
      GTY295343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Port A
      *2 Port B
    2. Apply 60 kPa (450 mmHg, 17.7 in. Hg) of vacuum to port B. Check that there is no change in vacuum after one minute.

      If the operation is not as specified, replace the air cleaner assembly.
