Components [12/2015 - 08/2016]

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

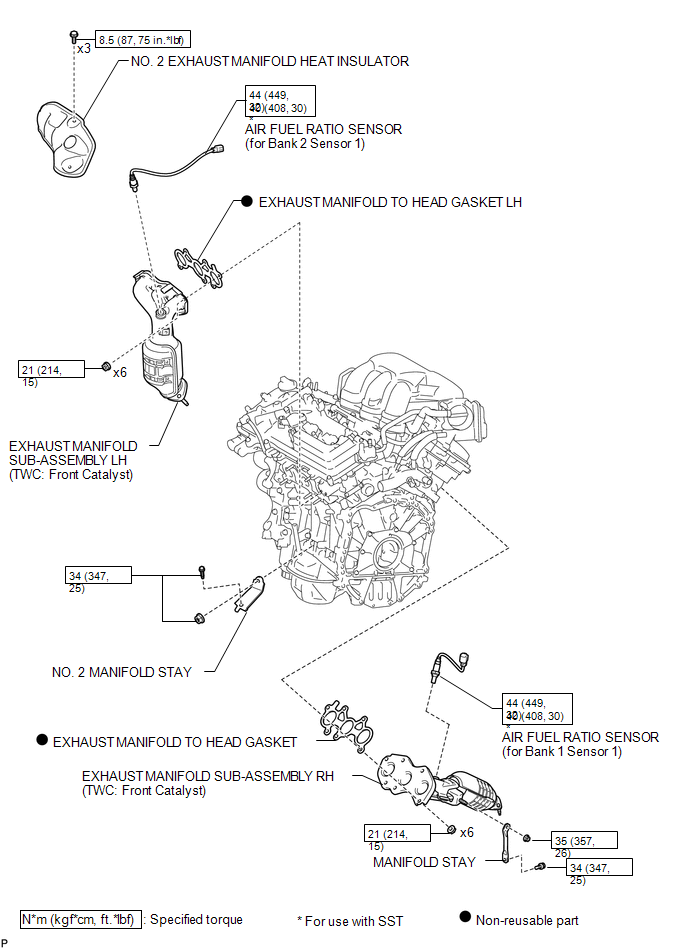

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Exhaust Manifold Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exhaust Manifold Replacement Components With Torque Specifications (4 Of 5)

Fig 5: Exhaust Manifold & Catalytic Converter Replacement Components With Torque Specifications (5 Of 5)
