Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

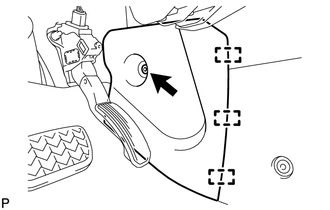

    1. Using a clip remover, remove the clip.
      GTY734100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides and remove the instrument panel finish panel end LH.
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY

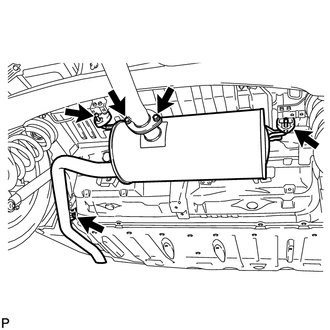

    1. Remove the 2 bolts to separate the tail exhaust pipe assembly from the center exhaust pipe assembly.
      GTY441757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 exhaust pipe supports to remove the tail exhaust pipe assembly from the vehicle.
    3. Remove the gasket from the center exhaust pipe assembly.
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY

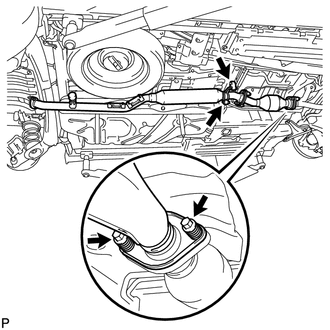

    1. Remove the 2 bolts and 2 compression springs to separate the center exhaust pipe assembly from the front exhaust pipe assembly.
      GTY298370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 exhaust pipe supports to remove the center exhaust pipe assembly from the vehicle.
    3. Remove the gasket from the front exhaust pipe assembly.
    4. Remove the 2 bolts and 2 compression springs to remove the center exhaust pipe sub-assembly (TWC: rear catalyst) from the center No. 2 exhaust pipe sub-assembly.
      GTY298384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the gasket from the center No. 2 exhaust pipe sub-assembly.
  4. REMOVE EXHAUST PIPE DAMPER
    1. Remove the 2 bolts and exhaust pipe damper from the center No. 2 exhaust pipe sub-assembly.
      GTY298367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Disconnect the oxygen sensor (for bank 1 sensor 2) connector.
      GTY723375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oxygen sensor (for bank 1 sensor 2) wire grommet and pass the connector through the hole to the outside of the vehicle.
    3. Disconnect the oxygen sensor (for bank 2 sensor 2) connector.
      GTY723401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 6 clamps to disconnect the oxygen sensor (for bank 2 sensor 2) wire from the 2 wire harness clamp brackets.
      GTY723400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen the bolt and separate the exhaust pipe clamp from the No. 1 exhaust pipe support bracket.
      GTY739038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

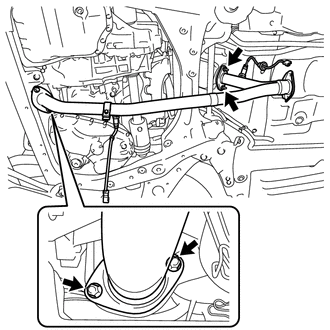

    6. Remove the 4 nuts and front exhaust pipe assembly from the exhaust manifold sub-assembly LH (TWC: front catalyst) and exhaust manifold sub-assembly RH (TWC: front catalyst).
      GTY476518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 gaskets from the front exhaust pipe assembly.
  6. REMOVE OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Using SST, remove the oxygen sensor (for bank 1 sensor 2) from the front exhaust pipe assembly.
      GTY296556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
      NOTE:

      If a component has been dropped or subjected to a strong impact, replace oxygen sensor (for bank 1 sensor 2).

  7. REMOVE NO. 2 OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Using SST, remove the No. 2 oxygen sensor (for bank 2 sensor 2) from the front exhaust pipe assembly.
      GTY711957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
      NOTE:

      If a component has been dropped or subjected to a strong impact, replace No. 2 oxygen sensor (for bank 2 sensor 2).
