Removal [12/2015 - ]: Procedure

(Refer to REMOVAL [12/2015 - ] )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

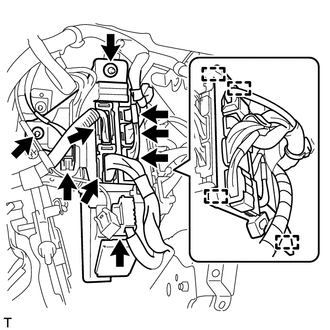

1. Disconnect the connectors on the front side.
2. Remove the 2 nuts.
3. Disengage the 4 guides and remove the junction connector.
4. Disconnect the connectors on the back side, and then remove the instrument panel junction block.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

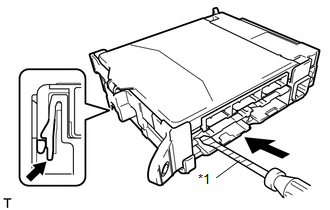

1. Release the lock on the junction block side.
2. While pressing the lock on the junction block side, insert a screwdriver with its tip wrapped in protective tape between the main body ECU and the junction block.
   TEXT IN ILLUSTRATION



   *1	Protective Tape

   NOTE:

   Use a thin-blade screwdriver with a diameter of 5.0 to 6.3 mm (0.197 to 0.248 in.), and with a length of 90 mm or more.

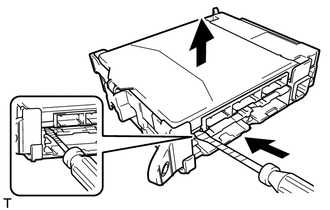

3. Do not pry the inserted screwdriver. Lift up the main body ECU to the point where the lock releases.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

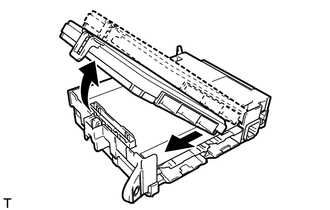

4. Remove the main body ECU by pulling it out from the junction block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
