Removal [12/2015 - ]: Procedure

Refer to PROCEDURE - Step 6 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - ]

1. Remove the bolt and resin clamp, and separate the front speed sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Resin Clamp

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Clean the front speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.

See step  2

Refer to PROCEDURE - Step 14

Refer to PROCEDURE - Step 9 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 12 [08/2016 - ]

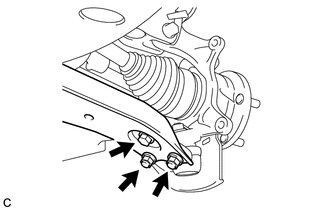

1. Remove the bolt and 2 nuts, and separate the front lower suspension arm sub-assembly from the front lower ball joint.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put matchmarks on the front drive shaft assembly and front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

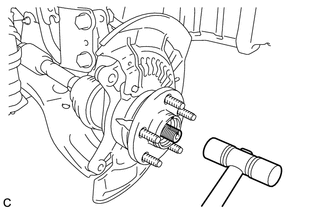

2. Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.

   If it is difficult to separate, tap the end of the front drive shaft assembly using a brass bar and a hammer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the drive shaft boot and speed sensor rotor.

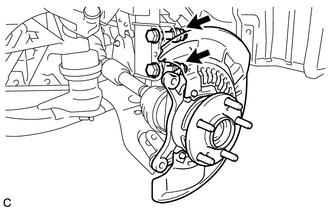

1. Remove the 2 bolts, 2 nuts and front axle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When removing the nuts, keep the bolts from rotating.
   • Be careful not to damage the drive shaft boot and speed sensor rotor.

1. Using a screwdriver with its tip wrapped in protective tape, remove the front No. 1 wheel bearing dust deflector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Protective Tape

   NOTE:

   Be careful not to damage the steering knuckle.

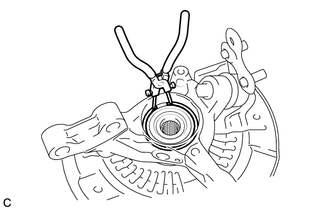

1. Using snap ring pliers, remove the front axle hub hole snap ring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the front axle assembly between aluminum plates in a vise.
   NOTE:

   Do not overtighten the vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

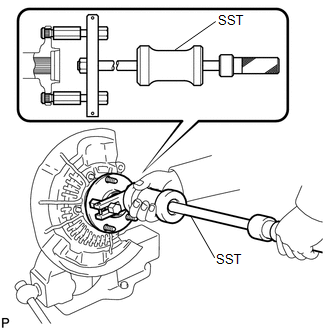

2. Using SST, remove the front axle hub sub-assembly.
   • SST: 09520-00031

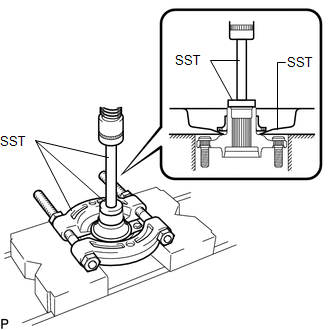

3. Using SST and a press, remove the front axle hub bearing inner race (outside) from the front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09555-55010
   • SST: 09950-60010
     1. 09951-00430
   • SST: 09950-70010
     1. 09951-07100
   NOTE:

   Be careful not to drop the front axle hub sub-assembly.

1. Place the front axle hub bearing inner race (outside) on the front axle hub bearing.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

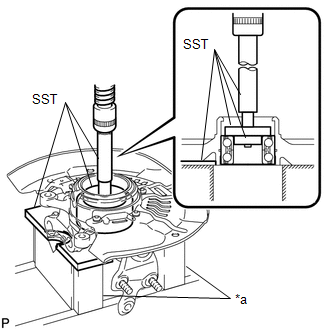

2. Using SST, V-blocks and a press, remove the front axle hub bearing from the steering knuckle.

   If the steering knuckle cannot be kept level using SST, stabilize the steering knuckle using a washer or an equivalent tool.

   TEXT IN ILLUSTRATION



   *a

   V-block

   • SST: 09527-21011
   • SST: 09950-60010
     1. 09951-00440
     2. 09952-06010
   • SST: 09950-60020
     1. 09951-00750
   • SST: 09950-70010
     1. 09951-07100
   NOTE:

   Keep the steering knuckle level.
