On-Vehicle Inspection [12/2015 - ]: Procedure

INSPECT FLUID LEVEL IN RESERVOIR

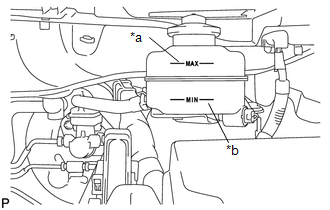

Check the fluid level.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	MAX Line
*b	MIN Line

If the brake fluid level is lower than the MIN line, check for leaks and inspect the disc brake pads. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.

Brake Fluid

SAE J1703 or FMVSS No. 116 DOT 3
