Rear Bumper
>>
Components [12/2015 - 11/2017]
Components [12/2015 - 11/2017]

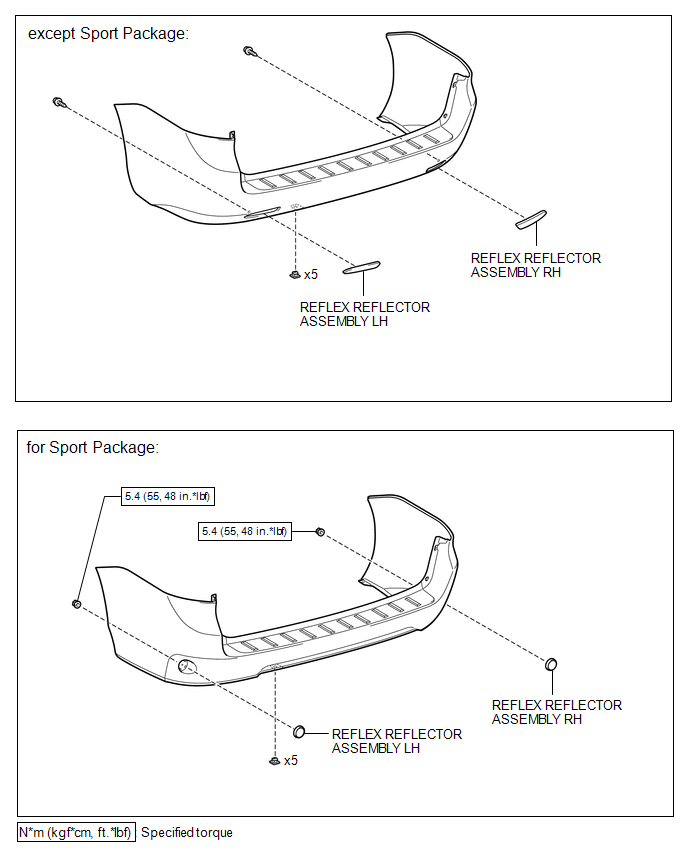

Fig 1: Rear Bumper Replacement Components With Torque Specifications [12/2015 - 11/2017] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

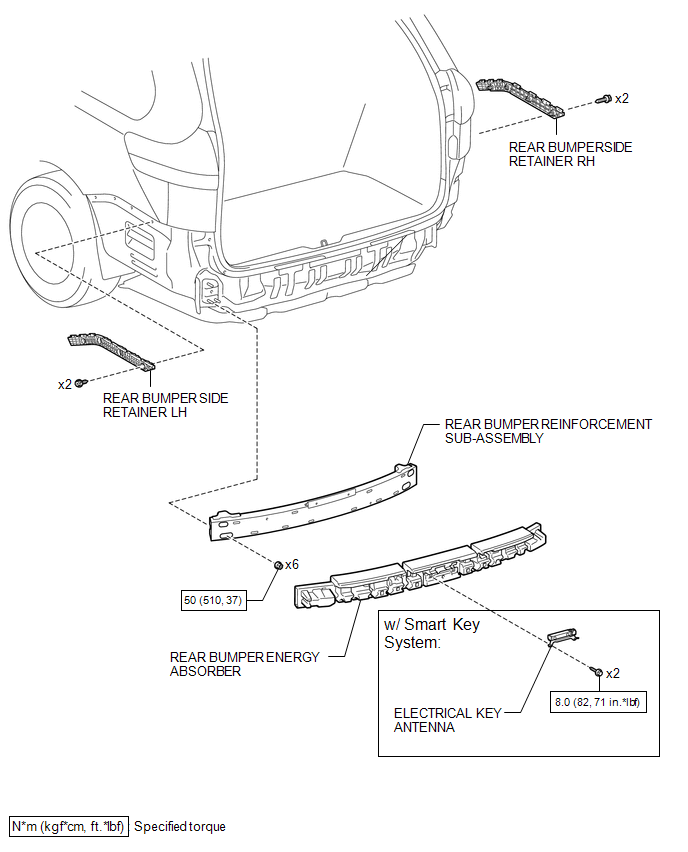

Fig 2: Rear Bumper Replacement Components With Torque Specifications [12/2015 - 11/2017] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

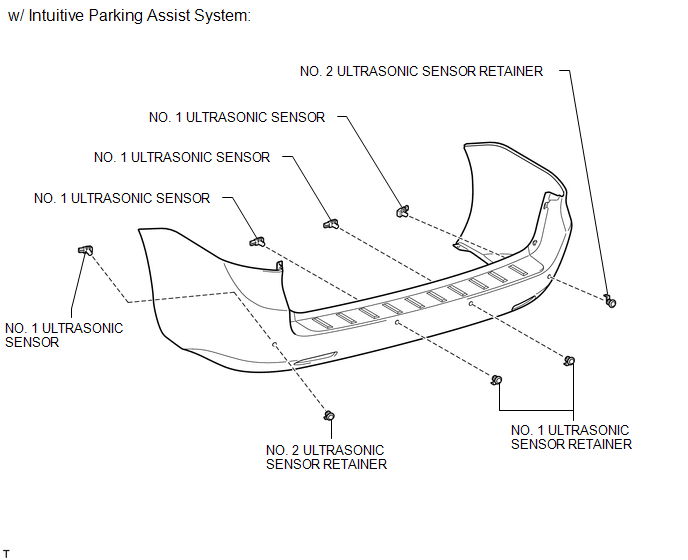

Fig 3: Rear Bumper Replacement Components [12/2015 - 11/2017] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

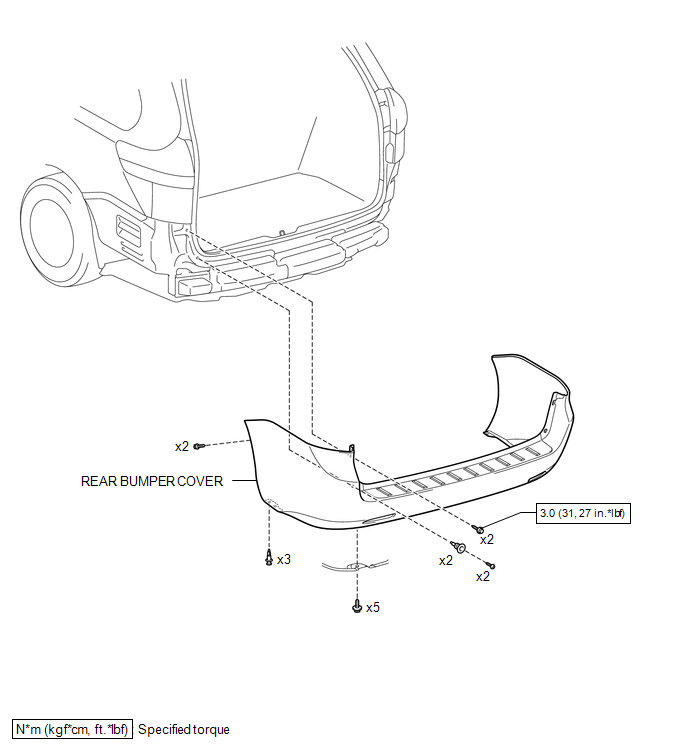

Fig 4: Rear Bumper Replacement Components With Torque Specifications [12/2015 - 11/2017] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
