Components [11/2017 - ]

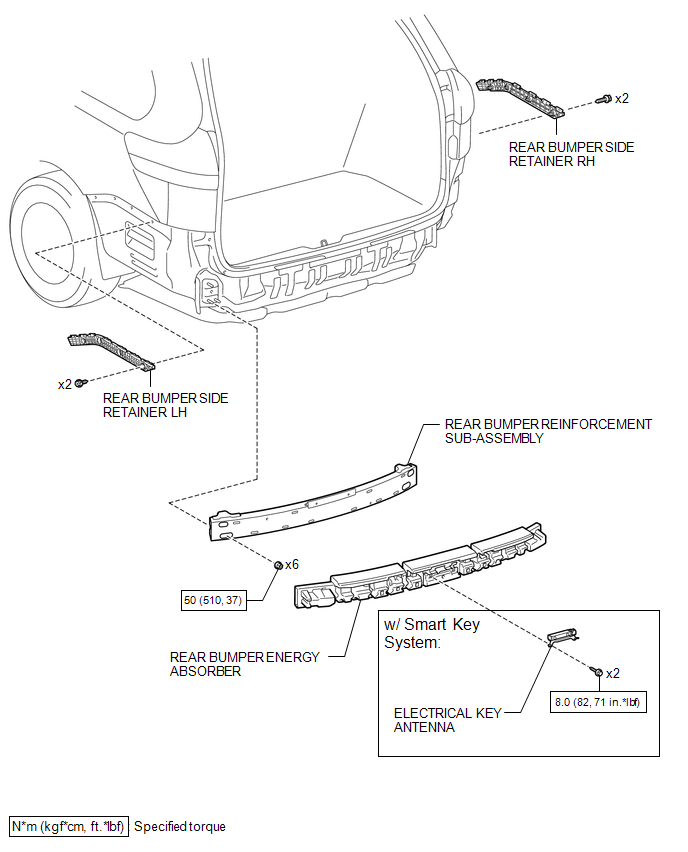

Fig 1: Rear Bumper Replacement Components With Torque Specifications [11/2017 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Bumper Replacement Components With Torque Specifications [11/2017 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

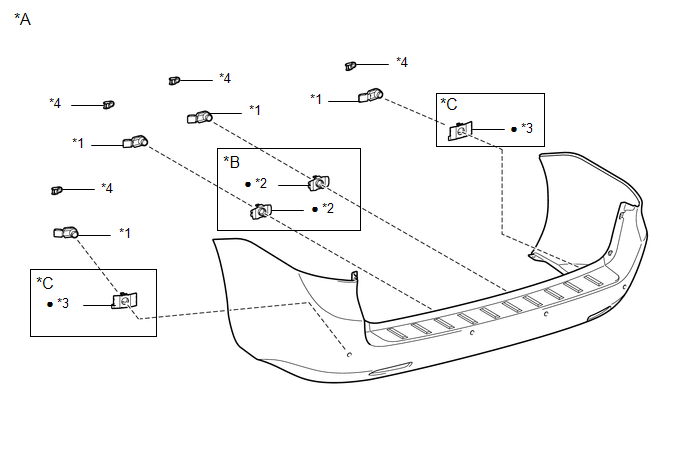

Fig 3: Rear Bumper Replacement Components [11/2017 - ] (3 Of 4)

*A	w/ Intuitive Parking Assist System	*B	for Back Sensor
*C	for Corner Sensor	-	-
*1	NO. 1 ULTRASONIC SENSOR	*2	NO. 1 ULTRASONIC SENSOR RETAINER
*3	NO. 2 ULTRASONIC SENSOR RETAINER	*4	ULTRASONIC SENSOR CLIP
•	Non-reusable part	-	-

Fig 4: Rear Bumper Replacement Components With Torque Specifications [11/2017 - ] (4 Of 4)
