Components [12/2015 - 11/2017]

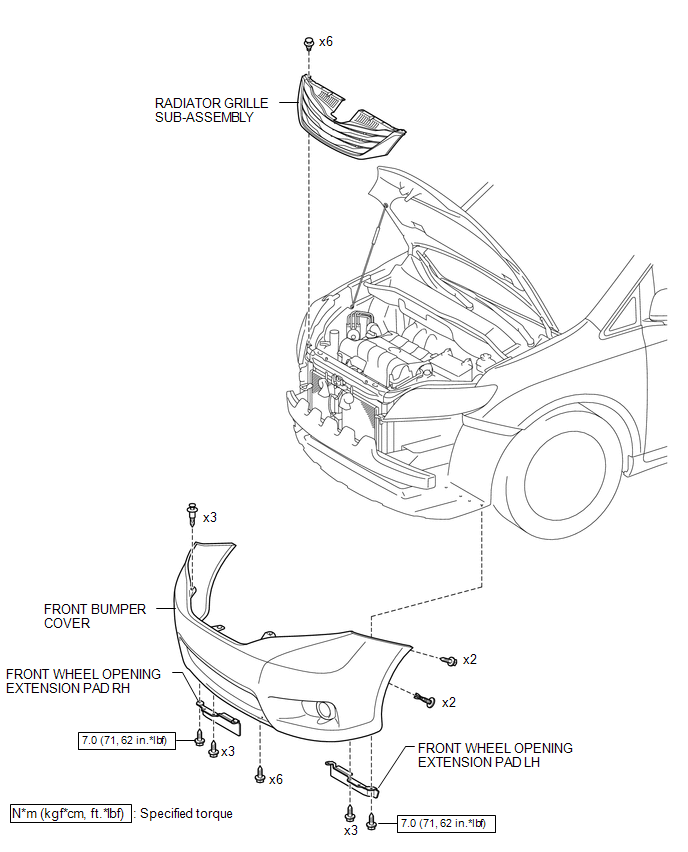

Fig 1: Front Bumper Replacement Components With Torque Specifications [12/2015 - 11/2017] (1 Of 5)
GTY473638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

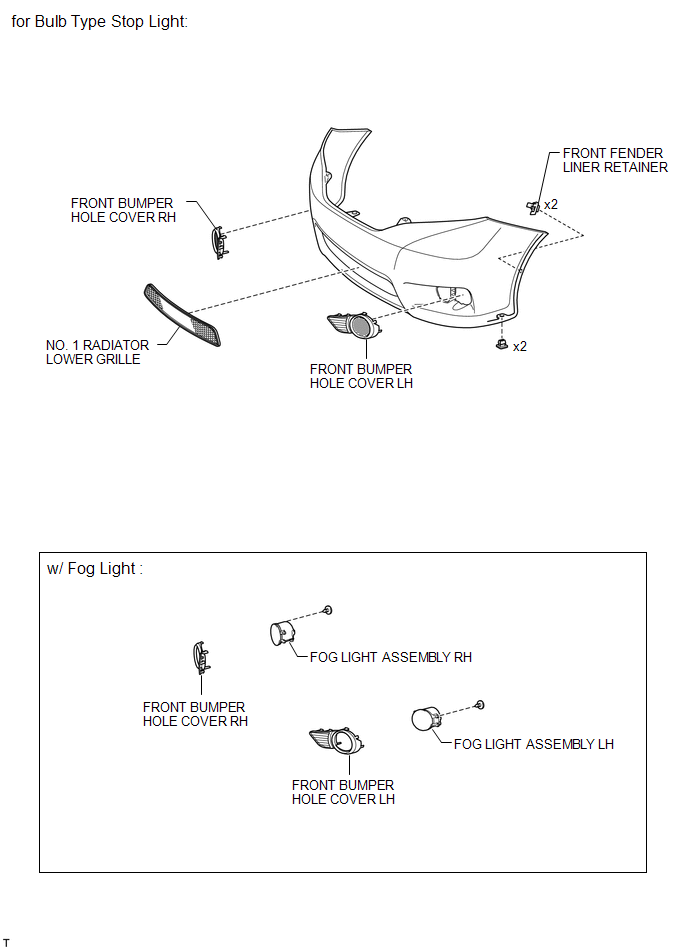

Fig 2: Front Bumper Replacement Components [12/2015 - 11/2017] (2 Of 5)
GTY480031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

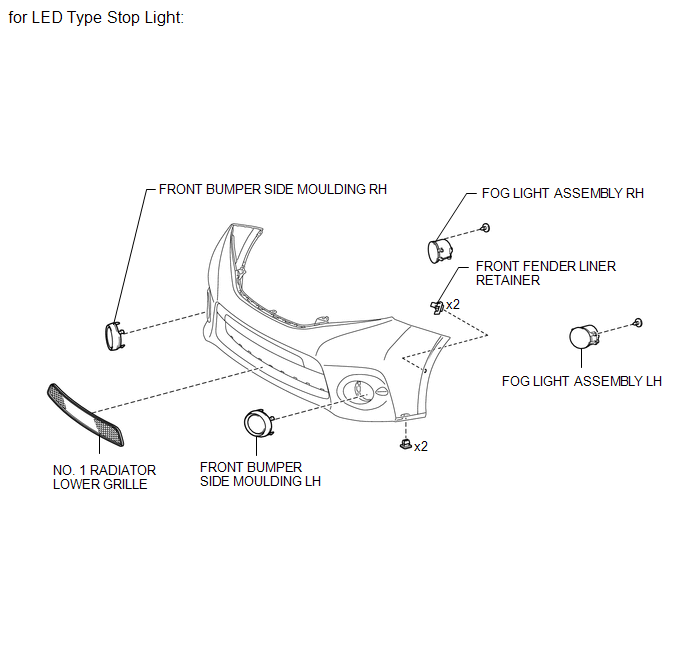

Fig 3: Front Bumper Replacement Components [12/2015 - 11/2017] (3 Of 5)
GTY714080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

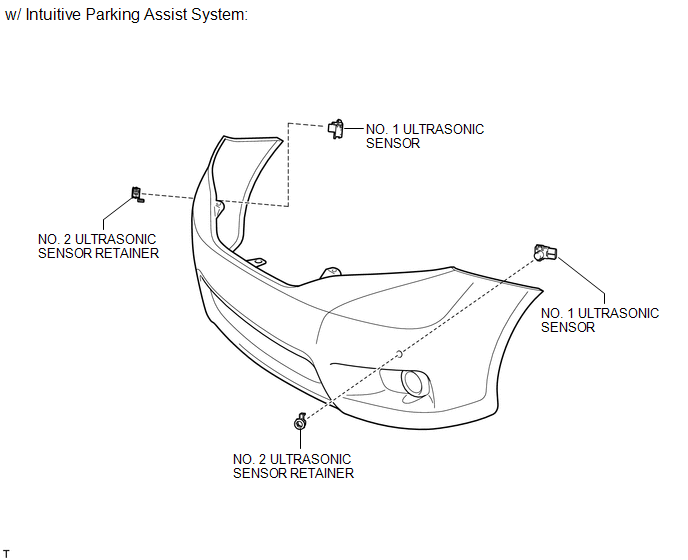

Fig 4: Front Bumper Replacement Components [12/2015 - 11/2017] (4 Of 5)
GTY298791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

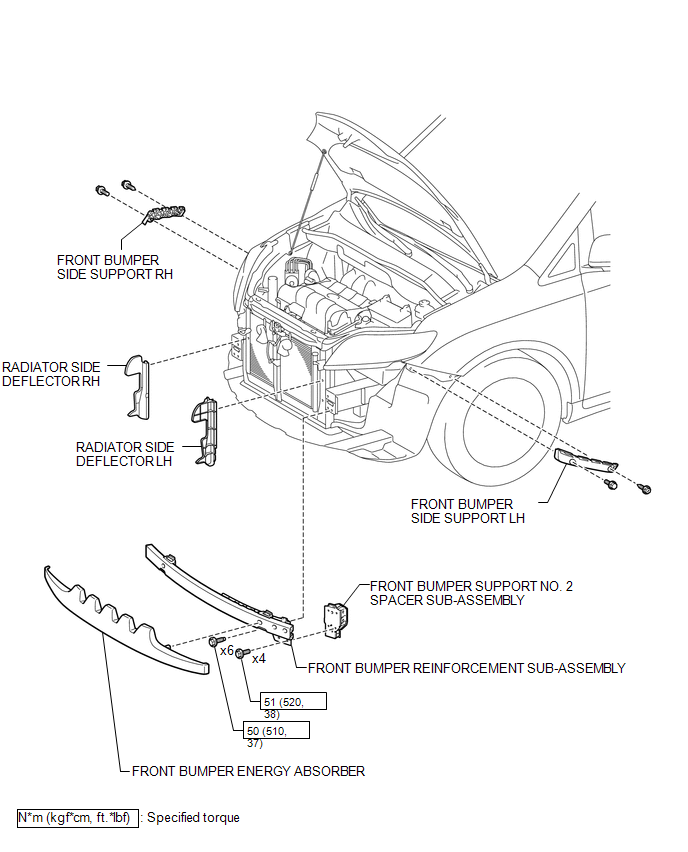

Fig 5: Front Bumper Replacement Components With Torque Specifications [12/2015 - 11/2017] (5 Of 5)
GTY478355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
