Removal [11/2017 - ]: Procedure

  1. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

    See step  7

  2. REMOVE NAVIGATION WIRE

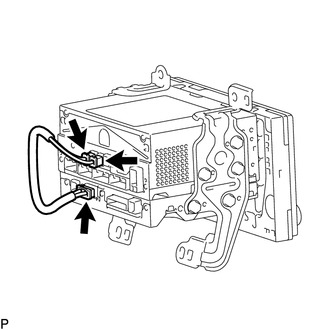

    1. Disconnect the 3 connectors to remove the navigation wire.
      GTY770983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. Remove the 5 bolts and No. 1 radio receiver bracket.
      GTY480273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIO RECEIVER BRACKET
    1. Remove the 5 bolts and No. 2 radio receiver bracket.
      GTY480272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NAVIGATION ECU
    1. Remove the navigation ECU.
