Removal [12/2015 - 11/2017]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    (Refer to REMOVAL [12/2015 - 11/2017] )

  2. REMOVE NAVIGATION WIRE

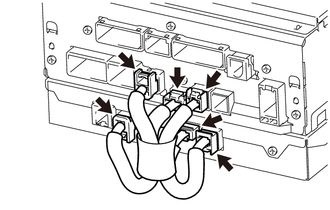

    1. Disconnect the 6 connectors to remove the navigation wire.
      GTY480271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. Remove the 5 bolts and No. 1 radio receiver bracket.
      GTY480273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIO RECEIVER BRACKET

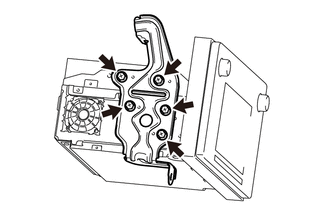

    1. Remove the 5 bolts and No. 2 radio receiver bracket.
      GTY480272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STEREO COMPONENT TUNER ASSEMBLY
    1. Remove the stereo component tuner assembly.
