Parts Location [12/2015 - 08/2016]: Illustration

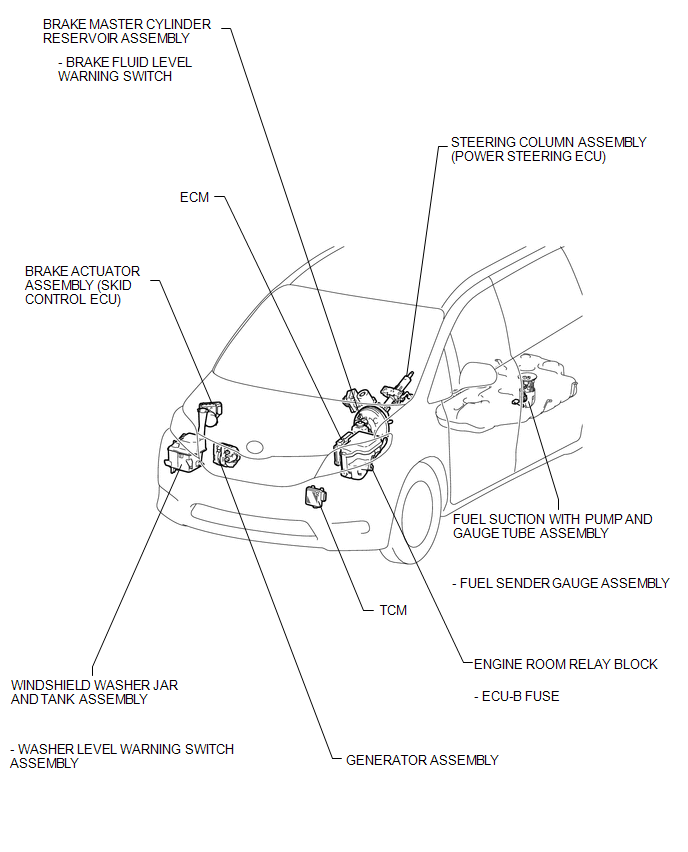

GTY725383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

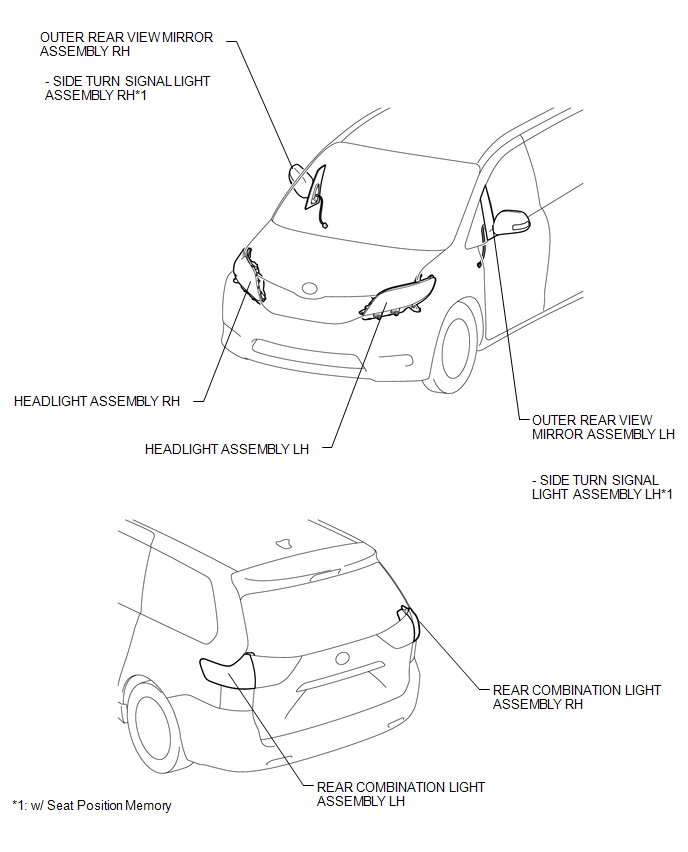

GTY700059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

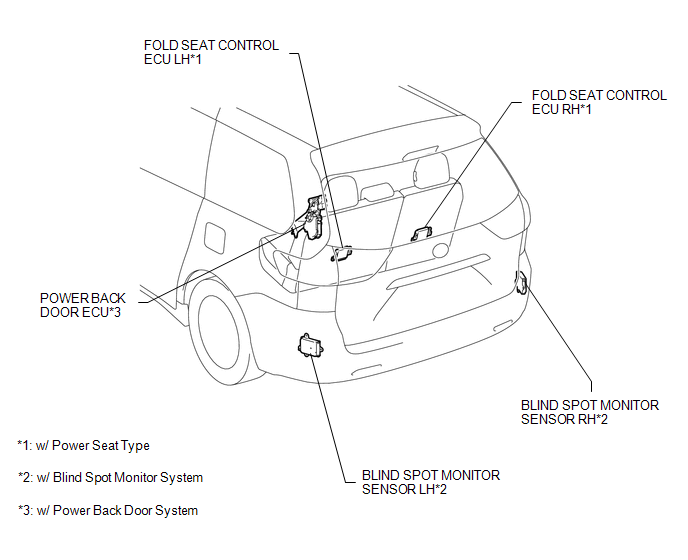

GTY705230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

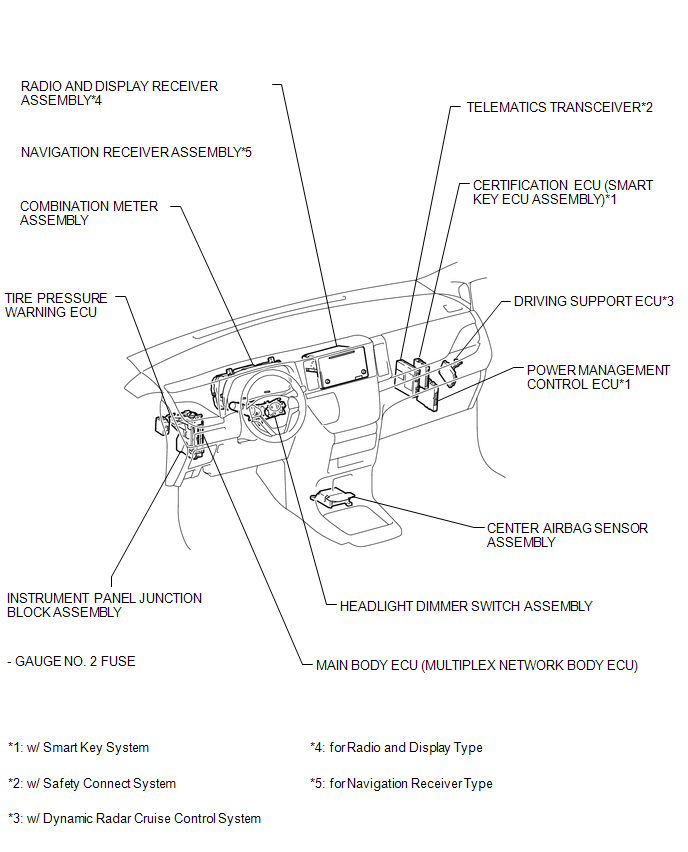

GTY474961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

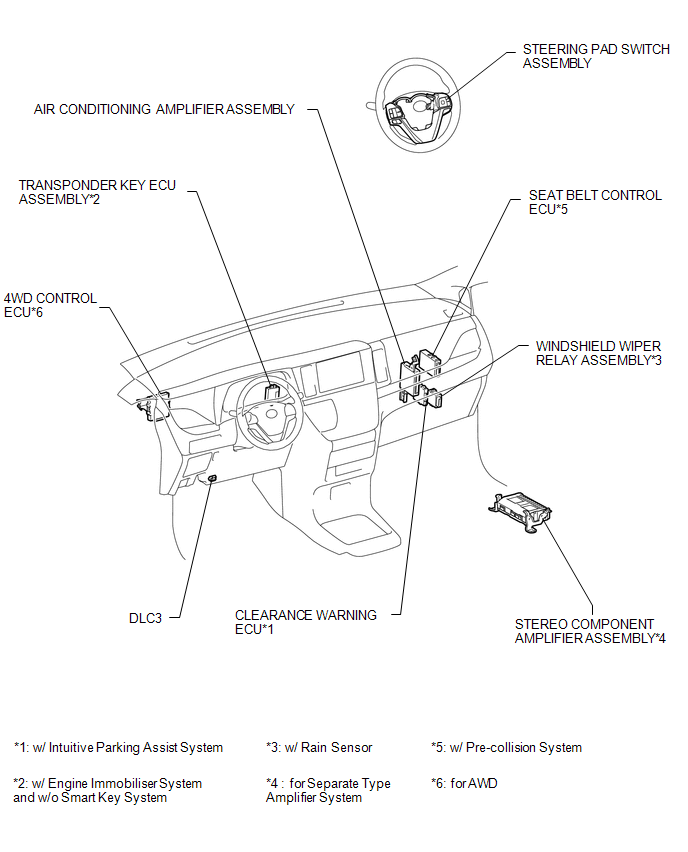

GTY686996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

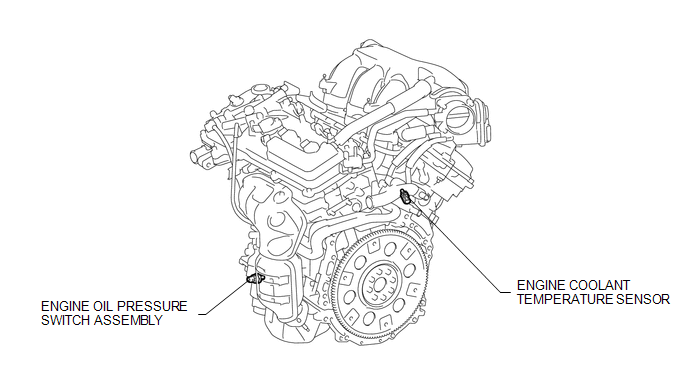

GTY739312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
