Parts Location [08/2016 - 11/2017]: Illustration

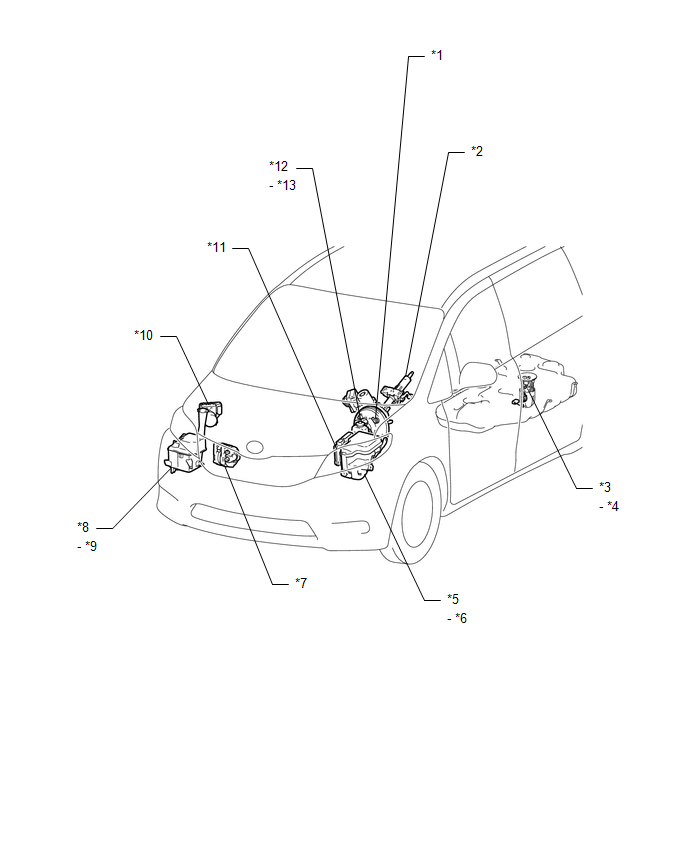

| *1 | VACUUM WARNING SWITCH ASSEMBLY | *2 | STEERING COLUMN ASSEMBLY (POWER STEERING ECU) |
| *3 | FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY | *4 | FUEL SENDER GAUGE ASSEMBLY |
| *5 | ENGINE ROOM RELAY BLOCK | *6 | ECU-B FUSE |
| *7 | GENERATOR ASSEMBLY | *8 | WINDSHIELD WASHER JAR AND TANK ASSEMBLY |
| *9 | WASHER LEVEL WARNING SWITCH ASSEMBLY | *10 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *11 | ECM | *12 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *13 | BRAKE FLUID LEVEL WARNING SWITCH | - | - |
| *A | w/ Seat Position Memory | - | - |

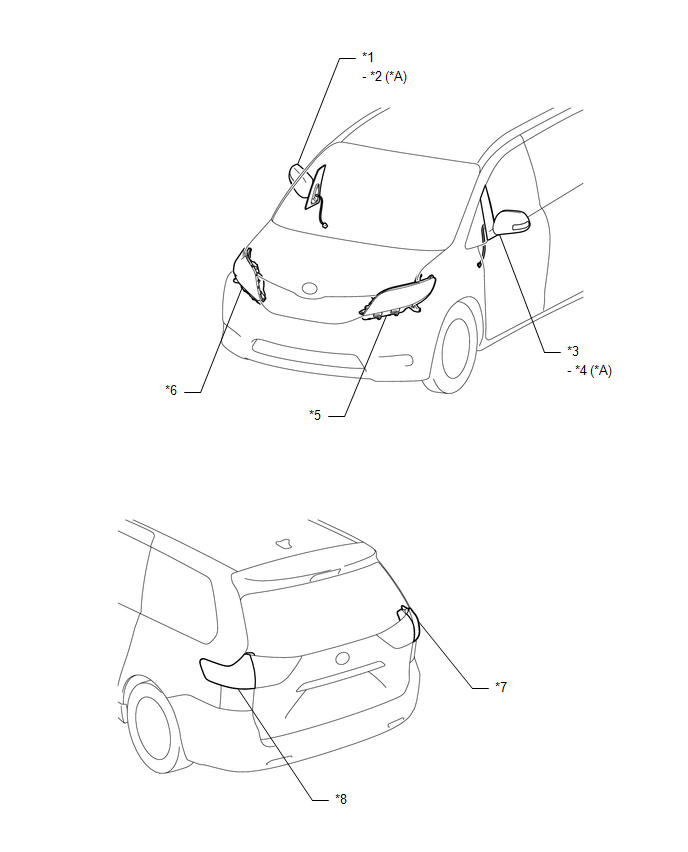

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY RH | *8 | REAR COMBINATION LIGHT ASSEMBLY LH |

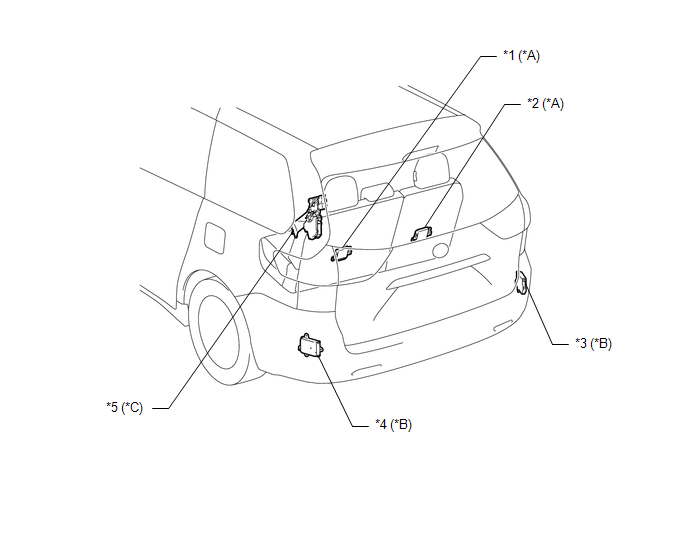

| *A | w/ Power Seat Type | *B | w/ Blind Spot Monitor System |
| *C | w/ Power Back Door System | - | - |
| *1 | FOLD SEAT CONTROL ECU LH | *2 | FOLD SEAT CONTROL ECU RH |
| *3 | BLIND SPOT MONITOR SENSOR RH | *4 | BLIND SPOT MONITOR SENSOR LH |
| *5 | POWER BACK DOOR ECU | - | - |

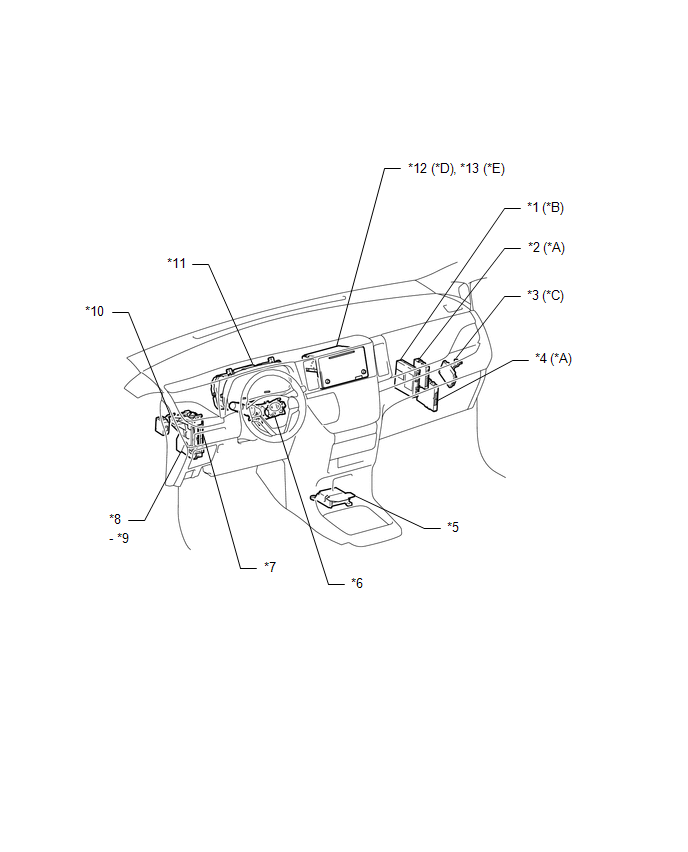

| *A | w/ Smart Key System | *B | w/ Safety Connect System |
| *C | w/ Dynamic Radar Cruise Control System | *D | for Radio and Display Type |
| *E | for Navigation Receiver Type | - | - |
| *1 | TELEMATICS TRANSCEIVER | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | DRIVING SUPPORT ECU | *4 | POWER MANAGEMENT CONTROL ECU |
| *5 | CENTER AIRBAG SENSOR ASSEMBLY | *6 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | GAUGE NO. 2 FUSE | *10 | TIRE PRESSURE WARNING ECU |
| *11 | COMBINATION METER ASSEMBLY | *12 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *13 | NAVIGATION RECEIVER ASSEMBLY | - | - |

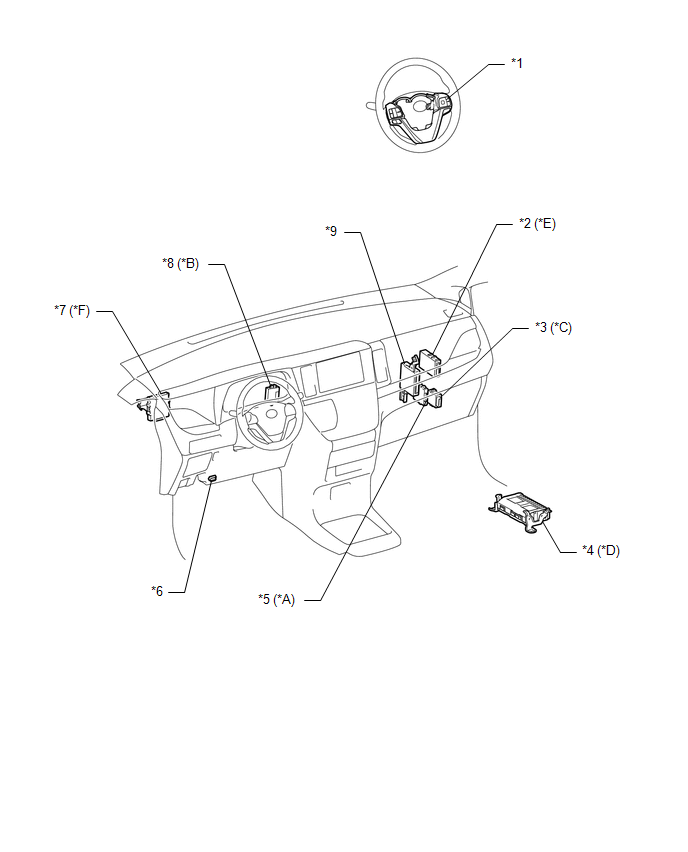

| *A | w/ Intuitive Parking Assist System | *B | w/ Engine Immobiliser System and w/o Smart Key System |
| *C | w/ Rain Sensor | *D | for Separate Type Amplifier System |
| *E | w/ Pre-collision System | *F | for AWD |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SEAT BELT CONTROL ECU |
| *3 | WINDSHIELD WIPER RELAY ASSEMBLY | *4 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *5 | CLEARANCE WARNING ECU | *6 | DLC3 |
| *7 | 4WD CONTROL ECU | *8 | TRANSPONDER KEY ECU ASSEMBLY |
| *9 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |
