DTC B1500: Fuel Sender Open Detected [08/2016 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Combination Meter / Data List.
5. According to the display on the Techstream, read the Data List.
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel input signal/ Min.: 0, Max.: 127.5	Current fuel level displayed	Unit: Liter

   RESULT



   Result	Proceed to
   Fuel level data can be displayed on the Techstream and DTC B1500 is output	A
   Fuel level data cannot be displayed on the Techstream	B

Result:

A

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [12/2015 - ] )

Result:

B

See step  2

1. Disconnect the combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D145-14 (FR) - D145-15 (FE)	Always	13.5 to 414.5 Ω

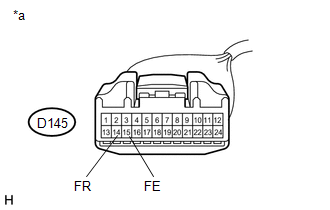

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Combination Meter Assembly)

Result:

OK

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [12/2015 - ] )

Result:

NG

See step  3

1. Disconnect the D145 combination meter assembly connector.
2. Disconnect the g4 fuel suction with pump and gauge tube assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D145-14 (FR) - g4-2	Always	Below 1 Ω
   D145-14 (FR) or g4-2 - Body ground	Always	10 kΩ or higher
   D145-15 (FE) - g4-3	Always	Below 1 Ω
   D145-15 (FE) or g4-3 - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Remove the fuel sender gauge assembly (Refer to REMOVAL [08/2016 - ] ).
2. Inspect the fuel sender gauge assembly (Refer to INSPECTION [08/2016 - ] ).

Result:

NG

REPLACE FUEL SENDER GAUGE ASSEMBLY

(Refer to REMOVAL [08/2016 - ] )

Result:

OK

See step  5

1. Remove the fuel suction pump and gauge tube assembly (Refer to REMOVAL [08/2016 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A-2 - B-2	Always	Below 1 Ω
   A-3 - B-1

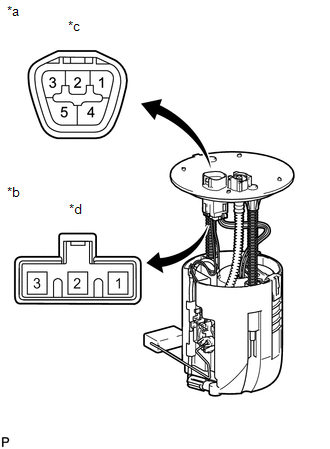

   TEXT IN ILLUSTRATION



   *a	Upper Side
   *b	Lower Side (to Fuel Sender Gauge Assembly)
   *c	Connector A
   *d	Connector B

Result:

OK

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL [12/2015 - ] )

Result:

NG

REPLACE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

(Refer to REMOVAL [08/2016 - ] )
