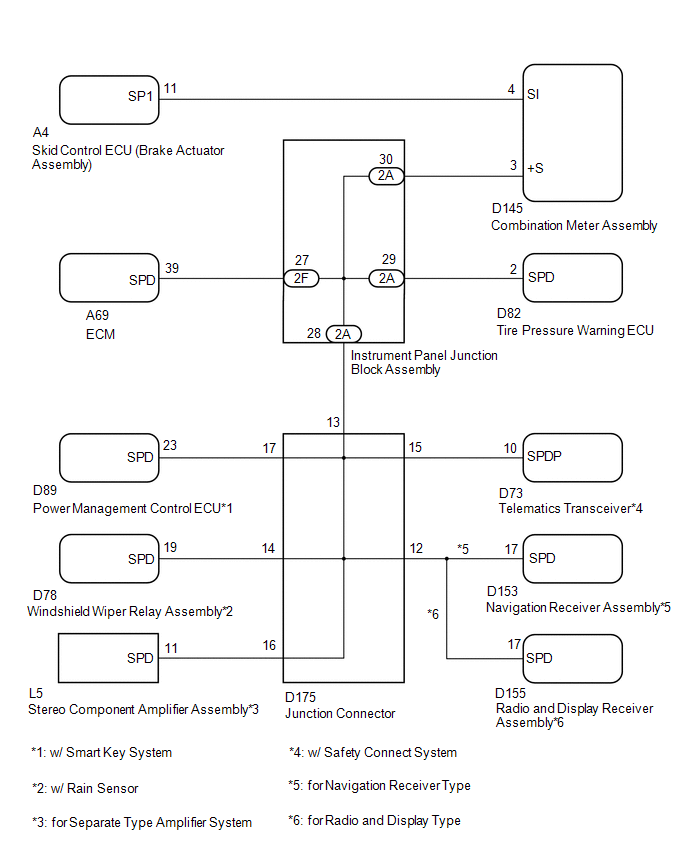

Speed Signal Circuit [08/2016 - 11/2017]: Wiring Diagram

GTY688451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
