Home >> Toyota >> 2019 >> Sienna SE, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Combination Meter (Service Information) >> Combination Meter >> Disassembly [12/2015 - ] >> Procedure

Disassembly [12/2015 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS

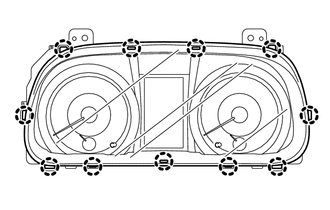

    1. Disengage the 11 claws to remove the combination meter glass.
      GTY480216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
