Can Communication System - Diagnostic Codes (2 Of 2) & Circuit Tests (1 Of 3)
>>
Can Communication System
>>
Diagnostic Codes
>>
DTC U1002 (CAN No. 2 BUS): Lost Communication with Gateway Module (Network Gateway ECU) [12/2015 - 08/2016]
>>

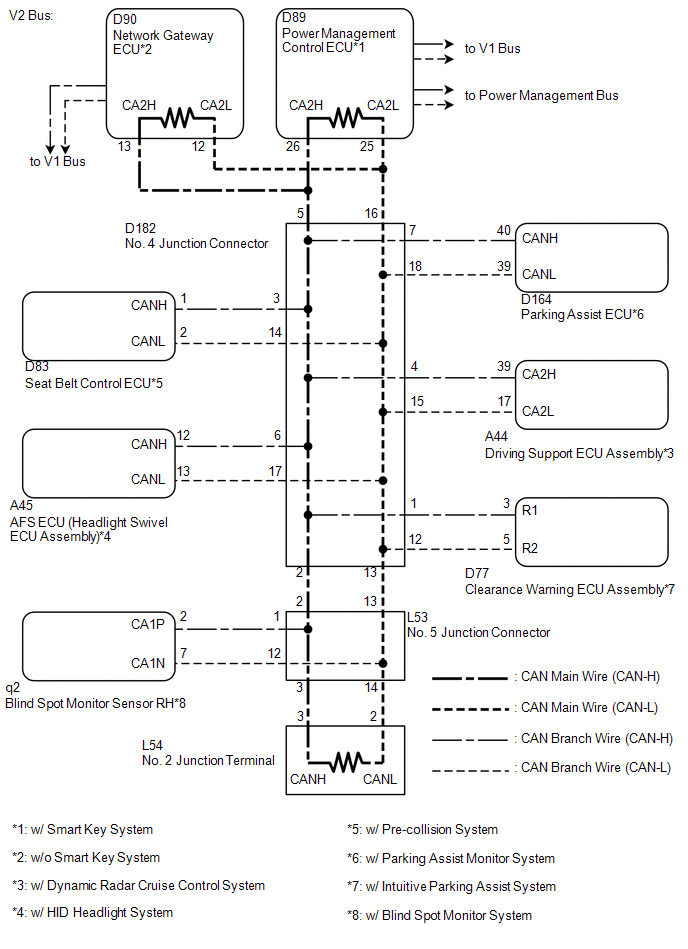

Wiring Diagram
DTC U1002 (CAN No. 2 BUS): Lost Communication with Gateway Module (Network Gateway ECU) [12/2015 - 08/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
