Section 5 (Automatic Transaxle System [UA80E] - Diagnostic Codes (1 Of 3))
>>
Automatic Transaxle System
>>
DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [08/2016 - ]
>>

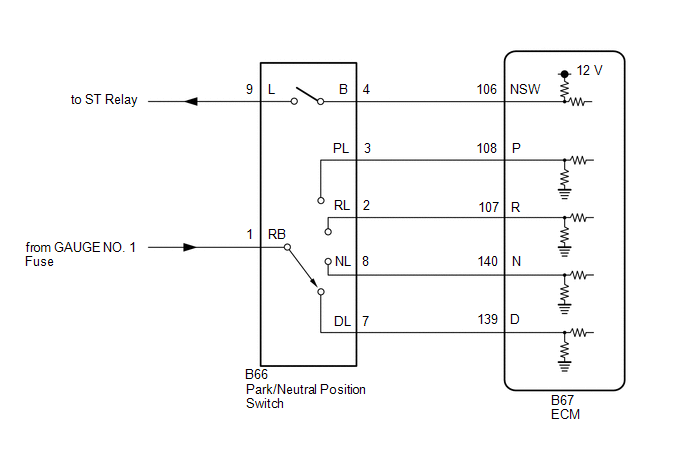

Wiring Diagram
DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [08/2016 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
