DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [11/2017 - ]: Wiring Diagram

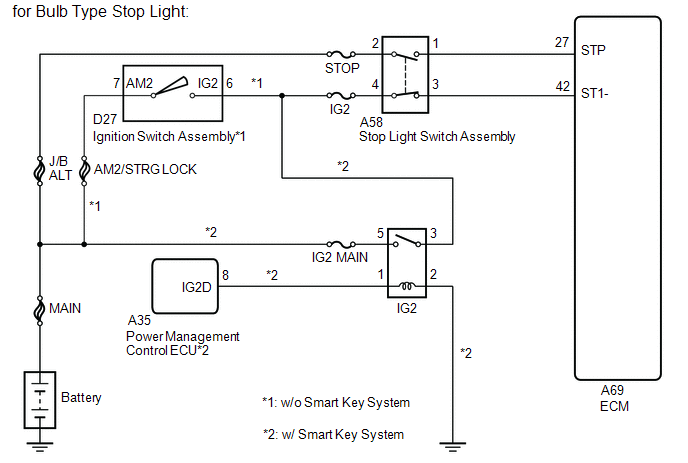

GTY768018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

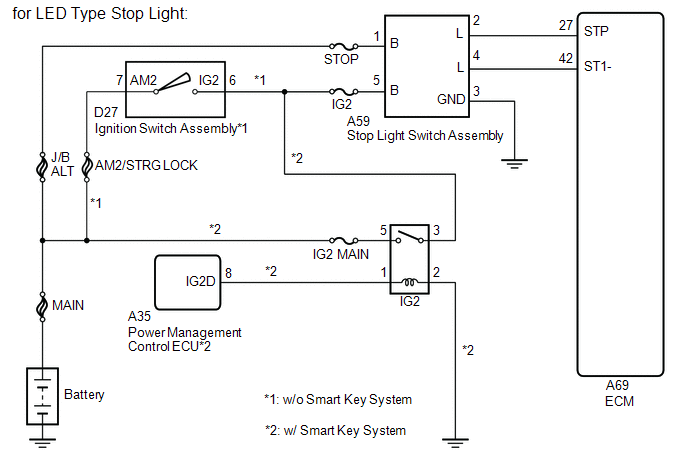

GTY760477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
